CAT6 SFTP Cable 500ft — Shielded LAN Cable,Solid Copper 23AWG for Enterprise Industrial Use

Brand Name:	ITI-LINK
Model Number:	ITI-CT6SF-06
MOQ:	1000pcs
Price:	50$-100$
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Maximum Frequency:

250MHz

Shielding Type:

SFTP

Jacket Material:

PVC

Conductor Size:

23AWG

Conductor Material:

Copper

Cable Type:

CAT6

Maximum Data Rate:

10Gbps

Maximum Transmission Distance:

500 Feet

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)

Highlight:

shielded CAT6 Ethernet cable

solid copper LAN cable

industrial SFTP network cable

Product Description

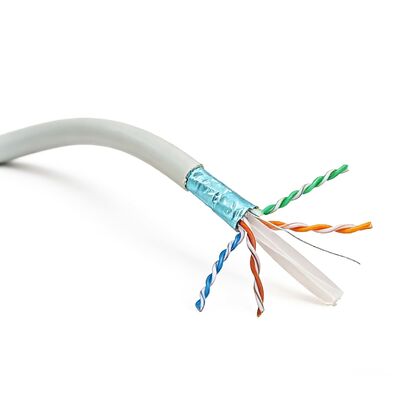

CAT6 SFTP Cable 500ft — Shielded LAN Cable, Solid Copper 23AWG for Enterprise Industrial Use

Professional-grade CAT6 SFTP Cable engineered for high-performance enterprise and industrial networks. Featuring 23AWG solid copper conductors, SFTP (foil + braid) shielding, and a grey LSZH jacket, this shielded LAN cable delivers reliable 10Gbps performance, superior EMI/RFI immunity, and safer fire behavior—ideal as a data center cable and industrial network cable for large deployments.

Product Overview

ITI-LINK ITI-CT6SF-021 is a professional-grade CAT6 SFTP Cable supplied in 500ft reels for bulk installations. The cable is tailored to enterprise, industrial automation and data center uses that demand both shielding and fire-safe jacketing.

Performance

Optimized for low insertion loss and consistent pair balance, the 23AWG solid copper construction combined with SFTP shielding ensures minimal interference and dependable 10Gbps data paths under realistic installation conditions.

Structure & Materials

Four 23AWG solid copper pairs with cross separator
High-coverage foil and braided shield layers
LSZH outer jacket with PVC/PE inner construction
Engineered for longevity and repeatable terminations

Application Value

Use for large-scale cabling projects—data center horizontal/vertical runs, industrial control cabinets, security & surveillance networks, 5G small cell backhaul inside buildings, and enterprise backbone cabling.

Brand & Compliance

ITI-LINK offers traceable manufacturing, test results and procurement support for ITI-CT6SF-021, meeting industry expectations for data center cable and industrial network cable deployments.

Technical Specifications

Construction & Electrical Properties

Construction Item	Description	Electrical Property	Value
Conductor Material	Bare Solid Copper (elongation: 19-24%)	Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Conductor OD	23 AWG	Resistance unbalance within a pair	≤ 2%
Insulation Material	HDPE	Insulation Resistance at 20°C	>1500 MΩ / 100m
Insulation OD	1.14 ±0.05 mm	Mutual capacitance	5600 pF / 100m MAX
Average THK	0.24 mm	Capacitance unbalance pair to ground	≤ 160 pF / 100m
Color Coding	1p: white+blue, 2p: white+orange, 3p: white+green, 4p: white+brown	Characteristic impedance at 100MHz	100 ± 15 Ω

Transmission Properties (CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013)

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (MAX ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
4	3.78	552	23.01	66.27
10	5.95	545.38	25	60.3
25	9.51	541.2	24.32	54.33
100	19.8	537.6	20.11	45.3
250	32.85	536.28	17.32	39.33

Applications

Campus & Education Networks: Safe LSZH cabling for lecture halls, labs and dorm networks
Retail Chains & POS Systems: Bulk cable runs for stores, point-of-sale and back-office connectivity
R&D & Engineering Centers: High-bandwidth links for large file transfers and collaborative engineering tools
Energy & Power Facilities: Use in switchgear rooms and control houses where EMI shielding reduces interference with instrumentation
Large-Scale Installations: Any project requiring bulk, shielded, LSZH-rated CAT6 cable for reliable, code-compliant deployments
