Bulk CAT8 FFTP Cable 22AWG Solid Copper 40Gbps 2000MHz LSZH Shielded LAN Cable for Data Center & Industrial Network

Brand Name:	ITI-LINK
Model Number:	ITI-CTF8-021
MOQ:	1000pcs
Price:	50$-100$
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor Material:

Copper

Jacket Material:

LSZH

Shielding:

FFTP

Cable Category:

CAT8

Conductor Gauge:

22 AWG

Jacket Color:

Green

Bandwidth:

2000 MHz

Length:

100 Meters

Packaging Details:

Inner box size: 31X31X18Cm Outer box size (for packing): 34X34X18CM

Highlight:

CAT8 FFTP cable 22AWG solid copper

CAT8 LAN cable 40Gbps data center

shielded CAT8 cable 2000MHz LSZH

Product Description

Bulk CAT8 FFTP Cable 22AWG Solid Copper 40Gbps 2000MHz LSZH Shielded LAN Cable

Professional shielded LAN cable designed for data center and industrial network applications, delivering reliable 40Gbps high-speed connectivity with 2000MHz bandwidth.

Product Overview

The ITI-LINK CAT8 FFTP Cable provides superior performance for modern network infrastructures. Featuring solid copper conductors and FFTP shielding, this cable ensures stable connectivity in demanding environments with its LSZH safety jacket.

Performance: Supports 2000MHz bandwidth and 40Gbps speed for critical systems

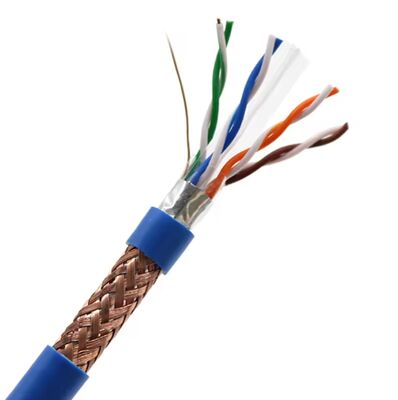

Structure: Solid copper conductors with FFTP shielding protect against EMI interference
Application Value: Ideal for AI servers, cloud platforms, and industrial network control systems
Brand Trust: Durable CAT8 cable solutions trusted by enterprises worldwide

Technical Specifications

Construction & Electrical Properties

Construction Item	Description	Electrical Property	Value
Conductor	Material: Bare Solid Copper (elongation: 19-24%)	Conductor Resistance at 20°C	≤ 5.6 Ω / 100m
		Resistance unbalance within a pair	≤ 0.2%
Insulation	Material: PE Skin-Foam-Skin OD: 1.62 ±0.01 mm Average THK: 0.50 mm	Insulation Resistance at 20°C	>1500 MΩ / 100m
		Mutual capacitance	5600 pF / 100m MAX
		Capacitance unbalance pair to ground	≤ 160 pF / 100m
Pair Shield	Material: Polyester/Aluminium (PET/ALU)	Characteristic impedance at 100MHz	100 ± 15 Ω
Jacket	Material: LSZH, 60P, -20~75℃	Dielectric Strength Test Voltage	No breakdown

Mechanical Properties

Component	Property	Value
Insulation	Elongation before aging	≥ 200%
	Tensile strength before aging	≥ 10 MPa
	Elongation after aging	≥ 150%
	Tensile strength after aging	≥ 8 MPa
Jacket	Elongation before aging	≥ 125%
	Tensile strength before aging	≥ 10 MPa
	Elongation after aging	≥ 100%
	Tensile strength after aging	≥ 8 MPa

Electrical Properties Compliance

Property	Standard	Value
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 5.6 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2 / IEC 60708	≤ 0.2%
Dielectric Strength Test Voltage	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m
Mutual capacitance	NF EN 50289-1-5 / IEC 60189-1	5600 pF / 100m MAX
Capacitance unbalance pair to ground	NF EN 50289-1-5 / IEC 60189-1	≤ 160 pF / 100m
Characteristic impedance at 100MHz	NF EN 50289-1-11 / IEC 61156-1	100 ± 15 Ω
Spark Test	UL444	2000 ± 250VOC
