CAT5E UTP LSZH White Cable High Speed Reliable Network Connectivity for Bulk Orders

Name: CAT5E UTP LSZH White Cable High Speed Reliable Network Connectivity for Bulk Orders
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5U-023
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT5U-023
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor Material:

Copper

Transmission Speed:

500 Mbps

Cable Type:

UTP

Number Of Conductors:

Application:

100Base-TX/100Base-T4/100VG-AnyLan/ATM/1000Base-

Jacket Material:

LSZH

Data Transfer Rate:

100 Mbps

Color:

White

Packaging Details:

Inner box size: 30x30x20cm Outer box size (for packing): 42x31.5x32cm

Highlight:

White LSZH CAT5E UTP Cable

Reliable LSZH CAT5E UTP Cable

High Speed LSZH CAT5E UTP Cable

Product Description

ITI-LINK ITI-CTSF6A-010 CAT5E UTP White LSZH Cable - 500FT for Bulk High-Speed Network Deployments

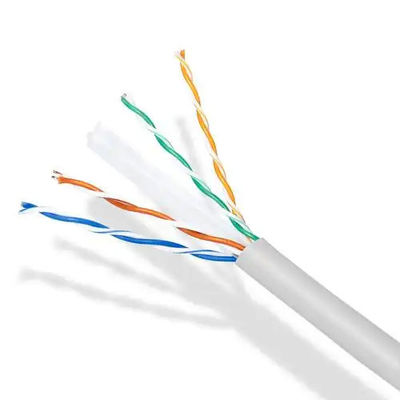

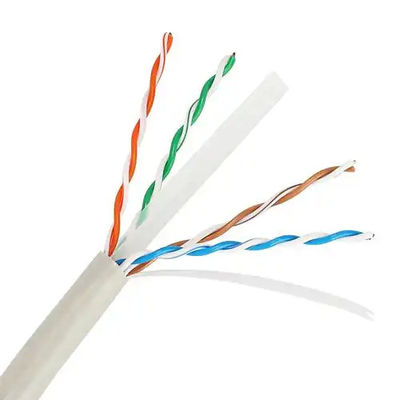

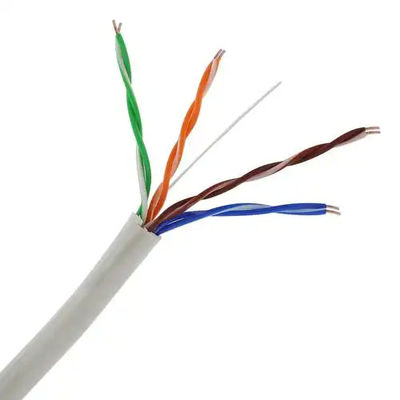

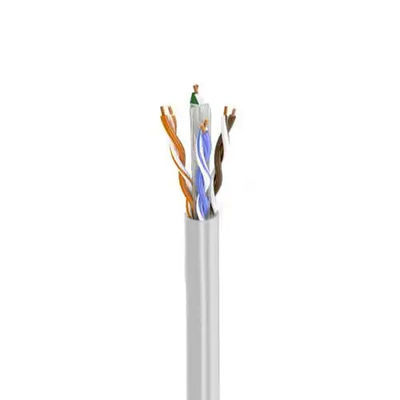

The ITI-CT5U-023 by ITI-LINK is a 500FT CAT5E UTP White LSZH cable built for large-scale network projects that demand reliable, cost-effective connectivity. Featuring 24AWG oxygen-free copper conductors and a flame-retardant LSZH (Low-Smoke Zero-Halogen) jacket in a clean white finish, this cable combines superior performance, safety, and aesthetics.

Key Features

Engineered for bulk orders with 500FT reel packaging
Supports up to 100MHz bandwidth and 1Gbps data transfer
UL-listed solution meeting strict low-smoke, halogen-free fire safety standards
White LSZH jacket resists abrasion, corrosion, and UV exposure
Unshielded UTP structure simplifies installation without grounding requirements
24AWG conductors minimize signal attenuation and crosstalk
Standardized 500FT reel format for efficient large-scale deployments

Technical Specifications

Parameter	Value
Termination Type	TIA/EIA 568B
Frequency	350MHz
Certifications	UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Conductor Material	Copper
Conductor Size	24 AWG
Jacket Material	LSZH
Length	1000 Feet
Color	White

Performance Characteristics

Frequency (MHz)	Attenuation (Max dB/100m)	NEXT (Min dB on 100m)	Return Loss (Min dB)
1	4.05	56.27	45
10	6.47	50.3	25
100	21.98	35.3	20.11

Applications

Ideal for:

Enterprise LANs and office networks
VoIP and HD video surveillance systems
Educational institutions and healthcare facilities
Smart home networks and IoT device integration
Mid-sized data center connectivity
Commercial building infrastructure

Bulk Order Advantage: The 500FT reel format reduces packaging waste and simplifies inventory management for large-scale deployments, offering significant cost savings compared to higher-tier cables.

Frequently Asked Questions

Q: What is the brand name of this UTP CAT5E Cable?

A: The brand name is ITI-LINK.

Q: What is the model number of this UTP CAT5E Cable?

A: The model number is ITI-CT5U-023.

Q: What is the maximum data transfer speed supported by this UTP CAT5E Cable?

A: This cable supports data transfer speeds of up to 1 Gigabit per second.

Q: Is this UTP CAT5E Cable suitable for outdoor installation?

A: No, this cable is designed for indoor use.
