| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF6A-012 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

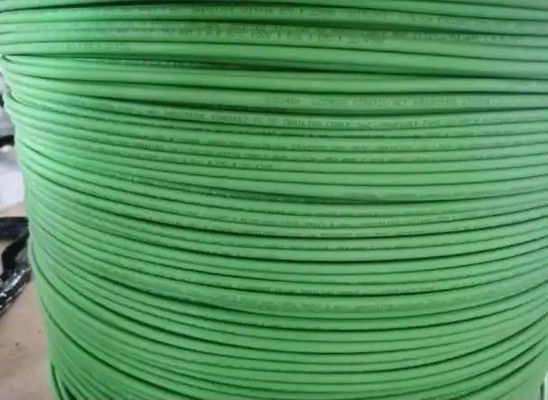

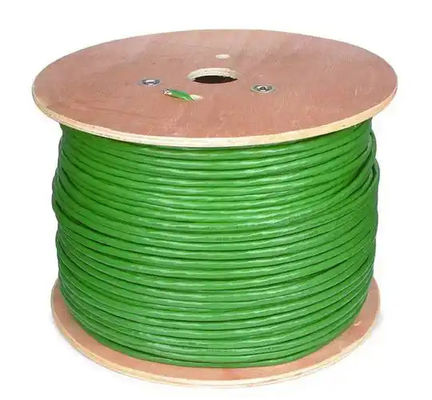

The ITI-LINK ITI-CTF6A-012 is a premium CAT6A FFTP 23AWG Solid Green Cable PVC engineered for wholesale buyers and large-scale network deployments. With a 500FT reel, 23AWG solid copper conductors, and FFTP (Foiled Foil Twisted Pair) double-foil shielding, this cable delivers 500MHz bandwidth and 10Gbps data transfer.
| Parameter | Value |
|---|---|
| Conductor Size | 23 AWG |
| Color | Green |
| Cable Type | FFTP |
| Category | CAT6A |
| Insulation Material | HDPE |
| Length | 500Ft |
| Jacket Material | PVC |
| Frequency | 500MHz |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB on 100m) |
|---|---|---|
| 4 | 3.8 | 66.27 |
| 10 | 5.93 | 60.3 |
| 100 | 19.13 | 45.3 |
| 250 | 31.07 | 39.33 |
| 500 | 45.26 | 34.82 |
Ideal for connecting 500+ server racks with stable 10Gbps speeds, ensuring seamless cloud computing, 4K video streaming, and big data processing.
Transmits control signals between PLCs, sensors, and robots with zero interference, even in environments filled with heavy machinery.
Enables consistent high-speed connectivity across multiple buildings, supporting online education platforms, surveillance systems, and smart utility networks.
