UTP CAT5E 4×2×24AWG Gray PVC Network Cable Bulk Sale High-Speed pass Fluke Test

Name: UTP CAT5E 4×2×24AWG Gray PVC Network Cable Bulk Sale High-Speed pass Fluke Test
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5U-026
Price: Negotiable USD
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT5U-026
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Category:

Ethernet CAT5e Cable

Bandwidth:

250 MHz

Conductor Amaterial:

Bare Copper

Jacket Material:

PVC

Certifications:

UL, ETL, RCM, CPR, CSA

Application:

Networking

Jacket Color:

Gray

Data Transfer Rate:

1000 Mbps

Conductor Material:

Copper

Packaging Details:

Color Box+Packing Box 36*36*21cm

Highlight:

24AWG UTP CAT5E Cable

Bulk Sale UTP CAT5E Cable

High-Speed UTP CAT5E Cable

Product Description

ITI-LINK ITI-CT5U-026 CAT5e UTP Network Cable

Premium High-Speed Ethernet Cable

This Fluke-tested Category 5e Ethernet cable is engineered for robust network performance in bulk deployment scenarios. Exceeding Category 5e standards (IEC, EIA/TIA), it delivers reliable high-speed data transmission for enterprise networks, data centers, and industrial applications.

Key Features

4×2×24AWG oxygen-free copper conductors for superior conductivity
HDPE insulation and PVC sheathing minimize signal attenuation and EMI
Supports 100Mbps Ethernet with Gigabit Ethernet upgrade capability
Gray PVC exterior for easy identification in complex wiring environments
Durable RJ45 connectors with gold-plated contacts for corrosion resistance
Certified: UL, ETL, RCM, TUV, CPR B2ca, CE, RoHS, CSA

Technical Specifications

Product Name	Cat5e Ethernet Cable
Conductor Material	Copper
Conductor Size	0.51±0.005mm
Frequency	250 MHz
Termination Type	TIA/EIA 568B
Jacket Material	PVC
Color	Gray
Length	1000 Feet

Construction Details

Construction Item	Description
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Insulation Material	HDPE 8303

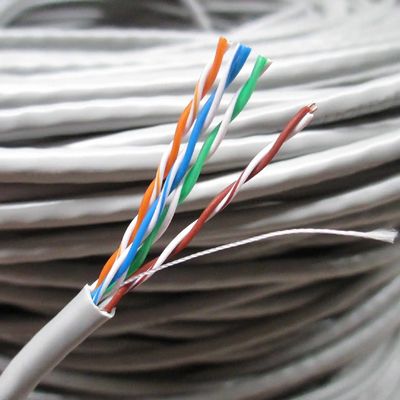

Pair Colors	1p: white+blue stripes, 2p: white+orange stripes, 3p: white+green stripes, 4p: white+brown stripes
Jacket Material	PVC, 45P (-20°C to 75°C)
OD	4.8 ± 0.2mm

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (ns/100m)	NEXT (Min dB)
4	4.05	552	56.27
100	21.98	537.6	35.3
250	21.5	537.14	36.5

Installation Guidelines

Wiring Planning and Design

Set information points according to actual needs. Maintain proper spacing from electromagnetic interference sources and follow standard bending radius guidelines (minimum 8× cable diameter).

Network Cable Connection

Follow EIA/TIA 568B or 568A standards. Use direct lines for network card-switch connections and crossover cables for network card-network card connections.

Testing Requirements

After installation, test lines with professional instruments to verify connectivity and transmission speed meet design requirements.

Frequently Asked Questions

Q: What is the brand and model of this cable?

A: ITI-LINK ITI-CT5U-026

Q: What is the maximum transmission distance?

A: Standard limit is 100m, though our cable performs well up to 150m in practical applications.

Q: What certifications does this cable have?

A: UL, ETL, RCM, TUV, CPR B2ca, CE, RoHS, CSA

Q: Is this cable suitable for Gigabit Ethernet?

A: Yes, it supports future Gigabit Ethernet upgrades while maintaining current 100Mbps performance.
