| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5SF-011 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

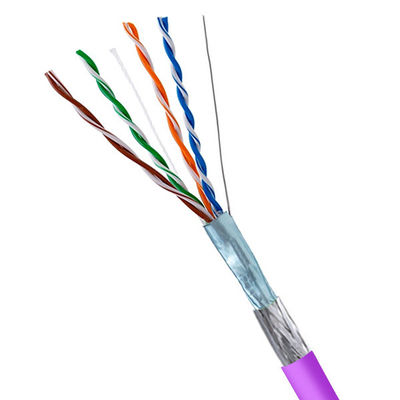

The CAT5E SFTP 24 AWG 500Ft 100MHz Purple PVC Jacket Shielded Cable is a high-quality Ethernet network cable designed for high-speed data transfer with superior protection against electromagnetic interference.
| Parameter | Value |
|---|---|
| Product Name | CAT5E SFTP 24 AWG 500Ft 100MHz Purple PVC Jacket Shielded Cable |
| Frequency | 100MHz (Extendable to 350Hz) |
| Conductor Material | Copper |
| Cable Shielding | SFTP |
| Jacket Color | Purple |
| Conductor Gauge | 24 AWG |
| Jacket Material | PVC |
| Cable Length | 305m (500Ft) |
| Cable Type | CAT5E |
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω/100m |
| OD | 24 AWG | Resistance unbalance within a pair ≤ 2% |
| Insulation | HDPE 8303 | Insulation Resistance >1500 MΩ/100m |
| Color Coding | 1p: white+2 blue stripes & blue 2p: white+2 orange stripes & orange 3p: white+2 green stripes & green 4p: white+2 brown stripes & brown |
Characteristic impedance at 100MHz: 100±15 Ω |
| Jacket | PVC, 50P, -20~75℃ | Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 4.05 | 552 | 45 | 56.27 |
| 8 | 5.77 | 546.73 | 24.52 | 51.75 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 16 | 8.25 | 543 | 25 | 47.24 |
| 20 | 9.27 | 542.05 | 25 | 45.78 |
| 100 | 21.98 | 537.6 | 20.11 | 35.3 |
