| Brand Name: | ITI-LINK |
| Model Number: | ITI-C6AU-009 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |

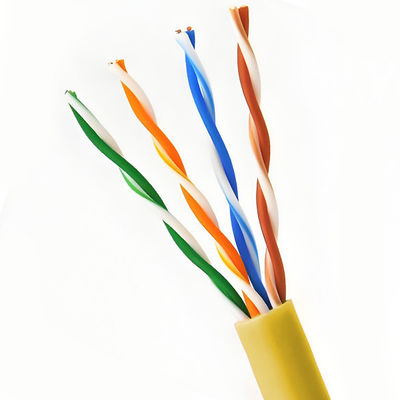

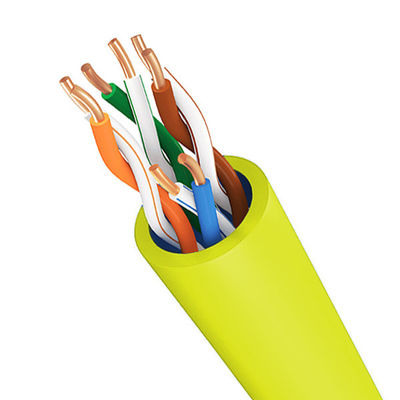

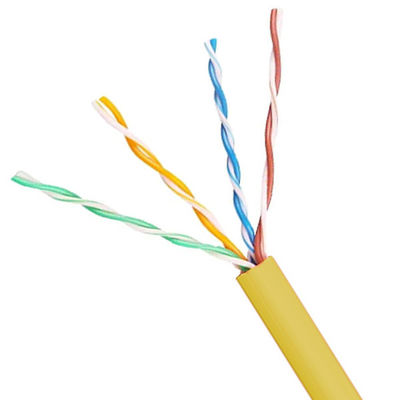

| Cable Type | UTP |
| Conductor Size | 23 AWG |
| Category | CAT6A |
| Jacket Material | PVC |
| Conductor Material | Copper |
| Length | 1000FT |
| Frequency | 500 MHz |
| Jacket Color | Yellow |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Insulation Resistance | >1500 MΩ / 100m |
| Jacket Material | PVC, 50P, -20~75℃ |
| Jacket Hardness | 81 ±3 |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 5% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.8 | 23.0 | 66.3 |
| 100 | 19.1 | 20.1 | 45.3 |
| 500 | 45.3 | 17.3 | 34.8 |
