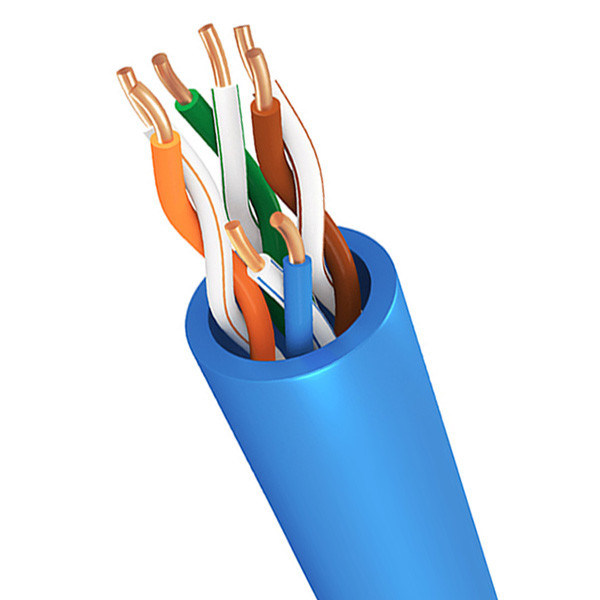

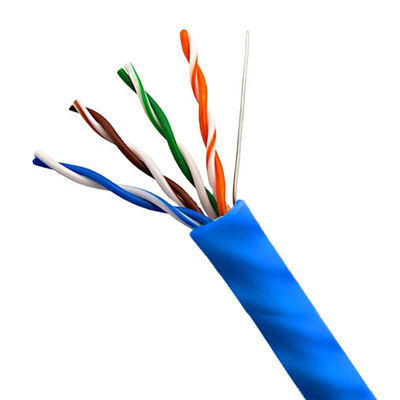

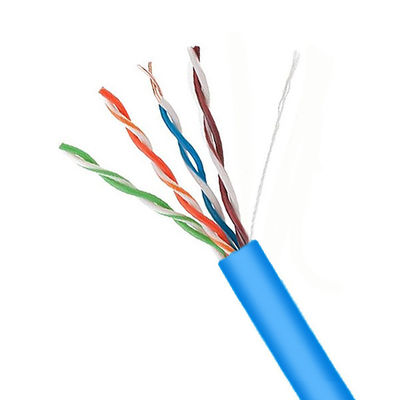

CAT6A UTP 23AWG Blue LSZH Jacket Cable For 10Gbps Data Transmission

Name: CAT6A UTP 23AWG Blue LSZH Jacket Cable For 10Gbps Data Transmission
Brand: Integrity Cable Co., Limited
SKU: ITI-C6AU-008
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-C6AU-008
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Length:

1000 Ft

Jacket Color:

Blue

Conductor Size:

23 AWG

Frequency:

500 MHz

Jacket Material:

PVC

Category:

CAT6A

Cable Type:

UTP

Conductor Material:

Copper

Packaging Details:

Wooden shaft packaging 32*22*12cm Outer box size： 37*37*24cm

Highlight:

23AWG cat6a utp lszh

Blue cat6a utp lszh

10Gbps lszh cable jacket

Product Description

CAT6A UTP 23AWG Blue LSZH Jacket Cable For 10Gbps Data Transmission

Product Overview

The UTP Cat6A Cable is a Category 6a cable with a 23AWG conductor that can transmit data at frequencies up to 500 MHz. This high-performance cable is ideal for demanding applications requiring fast and reliable data transfer. With a length of 1000 Ft, it's perfect for large-scale installations.

Key Features

Unshielded Twisted Pair (UTP) design with four pairs of twisted copper wires
23AWG solid bare copper conductors
Blue LSZH (Low-Smoke Zero-Halogen) jacket for safety and durability
Supports data transmission up to 10Gbps
500 MHz frequency performance
Flexible and easy to install
Environmentally friendly materials

Technical Specifications

Product Name	CAT6A UTP 23AWG Blue LSZH Jacket Cable
Cable Type	UTP (Unshielded Twisted Pair) Cat6A Ethernet Cable
Conductor Size	23 AWG
Conductor Material	Copper
Jacket Material	LSZH
Jacket Color	Blue
Length	1000 Ft
Frequency	500 MHz
Category	CAT6A

Electrical Properties

Property	Value
Single Conductor DC Resistance, Max, 20℃ (Ω/100m)	9.5
Conductor DC Resistance Imbalance, Max, 20℃ (%)	≤2
Pairs DC Resistance Imbalance, Max, 20℃ (%)	≤4
Insulation Resistance (MΩ.km)	5000
Pair To Ground Capacitance Unbalance, Max (pF/100m)	160
Delay Skew, 1-250MHz, Max (ns/100m)	45

Applications

Data centers and server rooms
Office networks
Local and wide area networks (LANs/WANs)
High-definition video streaming
Online gaming
Video surveillance systems
Medical and educational institutions
Outdoor installations (when properly protected)

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-C6AU-008.

Q: Where is this product manufactured?

A: This product is manufactured in SHENZHEN.

Q: What type of cable is this?

A: This is a UTP CAT6A cable.

Q: What is the length of this cable?

A: The length of this cable is 1000Ft.

Q: Can I order samples of LAN cables?

A: Yes, we welcome sample orders to test and check quality.

Q: What about the lead time?

A: Our factory takes 3-5 days to complete the sampling process, while mass production takes 15-45 days to complete.

Q: Do you have a minimum order quantity limit for network cable orders?

A: The order quantity generally starts at 1000PCS, and the starting quantity varies for different products, but the total quantity needs to exceed 1000PCS.
