| Brand Name: | ITI-LINK |
| Model Number: | ITI-C6AU-007 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |

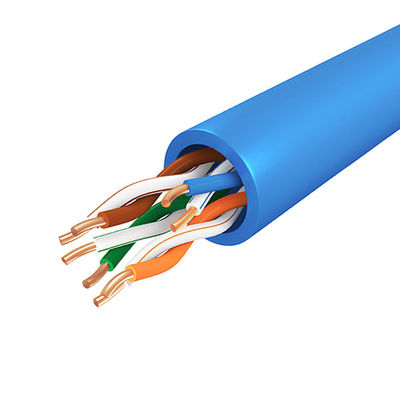

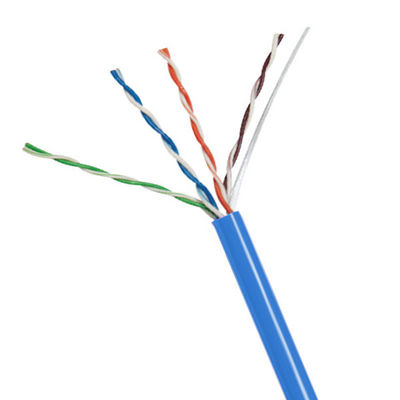

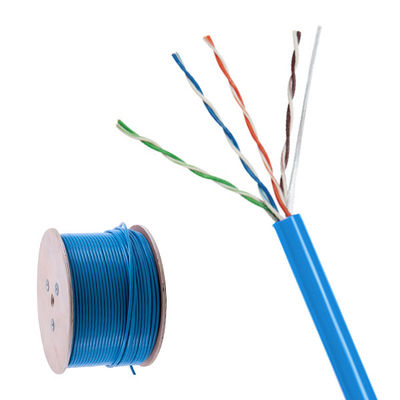

High-performance CAT6A UTP 23AWG CMR Plenum Cable with durable blue PVC jacket, designed for reliable 10Gbps data transmission up to 1000ft.
| Property | Value |
|---|---|
| Single Conductor DC Resistance, Max, 20℃ (Ω/100m) | 9.5 |
| Conductor DC Resistance Imbalance, Max, 20℃ (%) | ≤2 |
| Pairs DC Resistance Imbalance, Max, 20℃ (%) | ≤4 |
| Insulation Resistance (MΩ.km) | 5000 |
| Pair To Ground Capacitance Unbalance (pF/100m) | 160 |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.8 | 552 | 23.01 |
| 100 | 19.13 | 537.6 | 20.11 |
| 250 | 31.07 | 536.28 | 17.32 |
| 500 | 45.26 | 535.61 | 17.3 |
