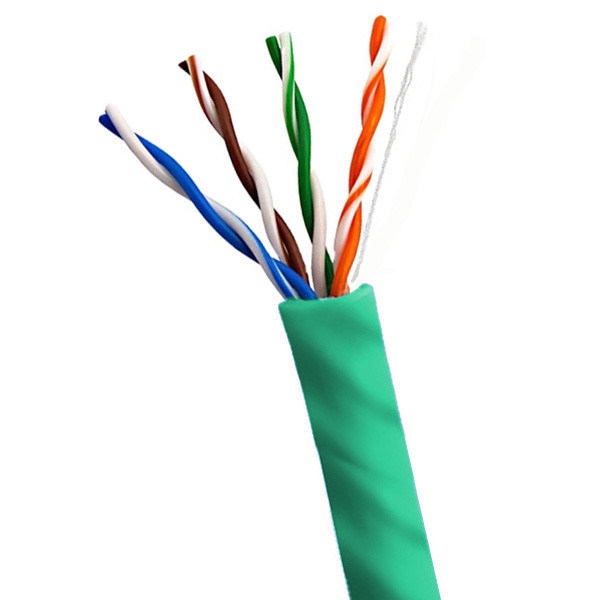

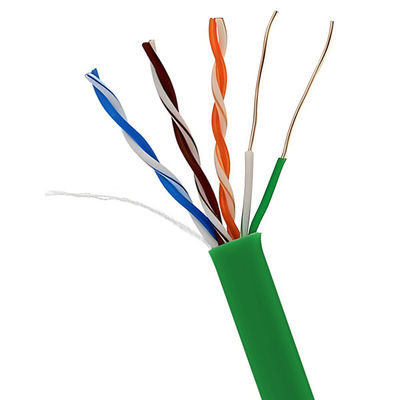

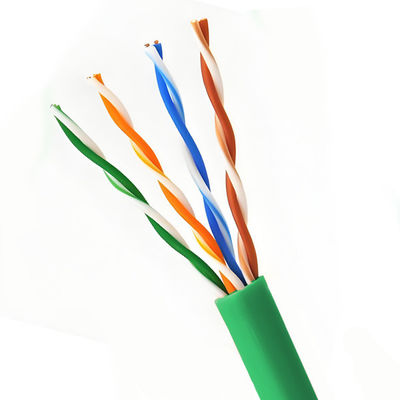

PVC Jacket UTP CMP CAT6A Plenum 1000ft 23AWG 10Gbps For Green Jacket

Name: PVC Jacket UTP CMP CAT6A Plenum 1000ft 23AWG 10Gbps For Green Jacket
Brand: Integrity Cable Co., Limited
SKU: ITI-C6AU-006
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-C6AU-006
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Material:

PVC

Conductor Size:

23 AWG

Cable Type:

UTP

Jacket Color:

Green

Category:

CAT6A

Length:

1000 Ft

Frequency:

500 MHz

Conductor Material:

Copper

Packaging Details:

Color Box+Packing Box 36*36*21cm

Highlight:

UTP cat6a plenum 1000ft

CMP cat6a plenum 1000ft

10Gbps cmp plenum

Product Description

PVC Jacket UTP CMP CAT6A Plenum 1000ft 23AWG 10Gbps For Green Jacket

Product Overview

The UTP Cat6A Cable is a high-performance unshielded twisted pair (UTP) cable with a length of 1000ft, featuring a distinctive green PVC jacket for easy identification during installation. Designed for modern high-speed networks, this cable supports data transfer speeds up to 10Gbps over distances of 1000ft.

Key Features

CMP Plenum Rated: Complies with strict fire-protection standards for installation in plenum spaces
High-Speed Performance: Supports 10Gbps data transfer at frequencies up to 500MHz
23AWG Conductors: Larger diameter copper conductors minimize signal attenuation over long distances
Durable PVC Jacket: Provides protection against environmental factors and physical damage
Optimized Design: Minimizes crosstalk between pairs for reliable data transmission

Technical Specifications

Product Attribute	Value
Product Name	CAT6A UTP 23AWG CMP Ethernet Cable
Cable Type	UTP
Category	CAT6A
Length	1000Ft
Conductor Material	Copper
Conductor Size	23 AWG
Frequency	500 MHz
Jacket Material	PVC
Jacket Color	Green

Detailed Construction Specifications

Construction Item	Description
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Insulation Material	FEP DAIKIN NP-101 E79842
Insulation Resistance	>1500 MΩ / 100m
Jacket Material	PVC, MSC 1080 NAT E107947
Jacket Hardness	81 ±3

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (Max ns/100m)	Return Loss (Min dB)
4	3.8	552	45
100	19.13	537.6	20.11
500	45.26	535.61	17.3

Applications

Commercial building network infrastructure
Data centers and server rooms
Industrial automation and control systems
Medical and laboratory equipment setups
Security and surveillance systems
Home theater and audio systems
Outdoor network installations (protected by durable PVC jacket)

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name is ITI-LINK.

Q: What is the model number of this product?

A: The model number is ITI-C6AU-006.

Q: What is the maximum data transfer rate of this cable?

A: This cable supports data transfer rates up to 10Gbps.

Q: Is this cable backwards compatible with CAT5 and CAT5e equipment?

A: Yes, this cable is backwards compatible with CAT5 and CAT5e equipment.
