UTP CAT6A 23AWG 500MHz CPR Dca LSZH Cable 1000FT For Network Connection

Name: UTP CAT6A 23AWG 500MHz CPR Dca LSZH Cable 1000FT For Network Connection
Brand: Integrity Cable Co., Limited
SKU: ITI-C6AU-003
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-C6AU-003
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Length:

1000FT

Jacket Material:

LSZH

Jacket Color:

Orange

Frequency:

500MHz

Cable Type:

UTP

Category:

CAT6A

Conductor Size:

23 AWG

Conductor Material:

Copper

Packaging Details:

Wooden shaft packaging 32*22*12cm Outer box size： 37*37*24cm

Highlight:

UTP cat6a 23awg

cat6a 23awg 500MHz

1000FT cat 6a 1000 ft

Product Description

UTP CAT6A 23AWG 500MHz CPR Dca LSZH Cable 1000FT For Network Connection

Product Overview

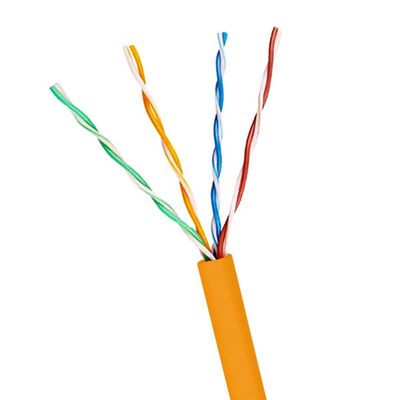

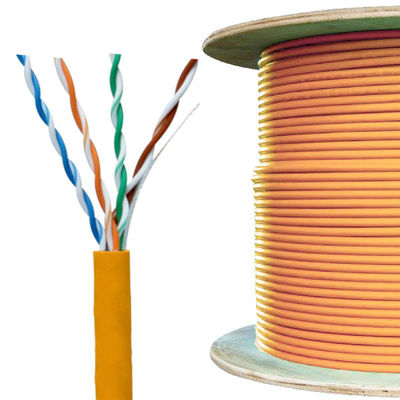

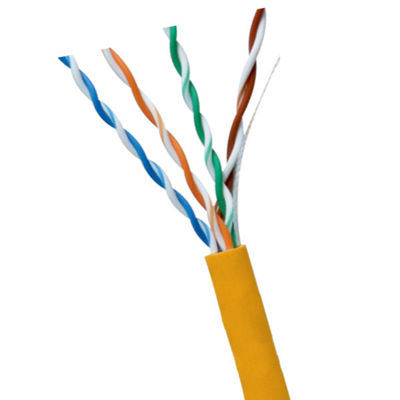

This 1000FT CAT6A UTP cable features an orange LSZH jacket for superior protection against corrosion and abrasion. The low-smoke, zero-halogen design enhances safety in fire situations while providing high visibility for easy installation. Engineered for industrial and commercial applications with strict safety requirements.

Key Features

500MHz frequency for high-bandwidth applications including video streaming and cloud computing
Category 6A performance that exceeds industry standards with CPR Dca compliance
23AWG oxygen-free copper conductors for optimal signal quality and minimal interference
LSZH jacket provides durability while meeting strict fire safety standards
1000FT length for extensive network installations

Technical Specifications

Cable Type	UTP
Category	CAT6A
Conductor Material	Copper
Conductor Size	23 AWG
Jacket Material	LSZH
Jacket Color	Orange
Frequency	500 MHz
Length	1000FT

Detailed Construction Specifications

Construction Item	Description	Electrical Properties	Value
Conductor	Material	Oxygen-Free Bare Solid Copper
	Elongation	Single Conductor DC Resistance,Max,20℃	9.5Ω/100m
	OD	Conductor DC Resistance Imbalance,Max,20℃	≤2%

Transmission Performance

Freq (MHz)	Characteristic Impedance (Ω)	RL (dB)	ATT (dB/100m)	NEXT (dB/100m)
4	115.2-86.8	≥23	≤3.8	≥66.3

Applications

This high-performance CAT6A cable is ideal for:

Office networks requiring robust connectivity
Home networks for gaming and streaming
Data center server connections
Educational institution networks
Hospital medical equipment connections
Industrial control systems

Frequently Asked Questions

Q: What is the brand name of this UTP CAT6A cable?

A: The brand name is ITI-LINK.

Q: What is the model number of this UTP CAT6A cable?

A: The model number is ITI-C6AU-003.

Q: Where is this UTP CAT6A cable made?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum data transfer rate supported by this UTP CAT6A cable?

A: This cable supports data transfer rates of up to 10 Gbps.

Q: Is this UTP CAT6A cable suitable for outdoor use?

A: No, this cable is not suitable for outdoor use as it is not designed to withstand exposure to the elements.
