| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF6A-008 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

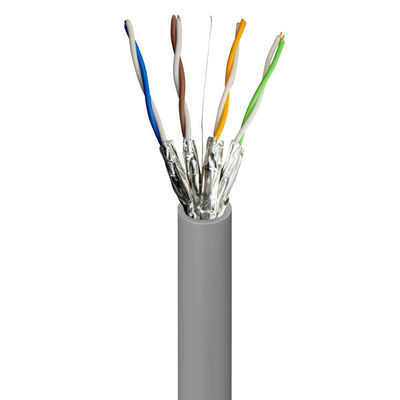

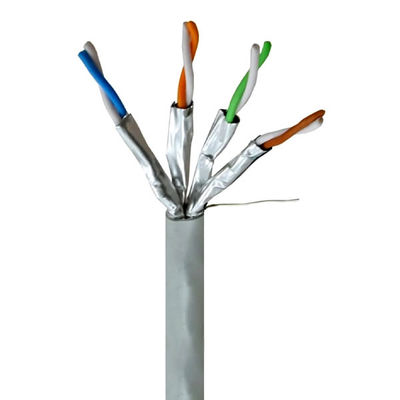

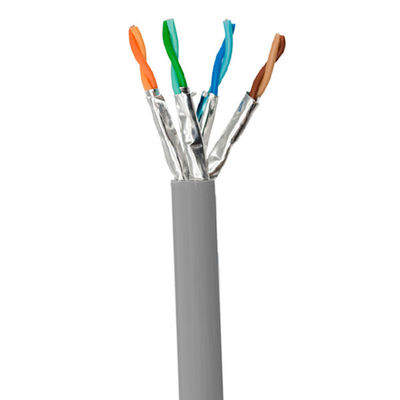

| Cable Type | U/FTP |
| Category | CAT6A |
| Color | Gray |
| Conductor Size | 23 AWG |
| Frequency | 500MHz |
| Length | 1000FT |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω / 100m |
| Insulation Material | PE Skin-Foam-Skin | Insulation Resistance >1500 MΩ / 100m |
| Pair Shield | Polyester/Aluminium (PET/ALU), Coverage ≥ 115% | Characteristic impedance at 100MHz: 100 ± 5 Ω |
| Jacket | PVC, 50P, -20~75℃, Hardness 81± 3 | Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.8 | 23.01 | 66.27 |
| 100 | 19.13 | 20.11 | 45.3 |
| 500 | 45.26 | 17.3 | 34.82 |
