| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF6A-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |

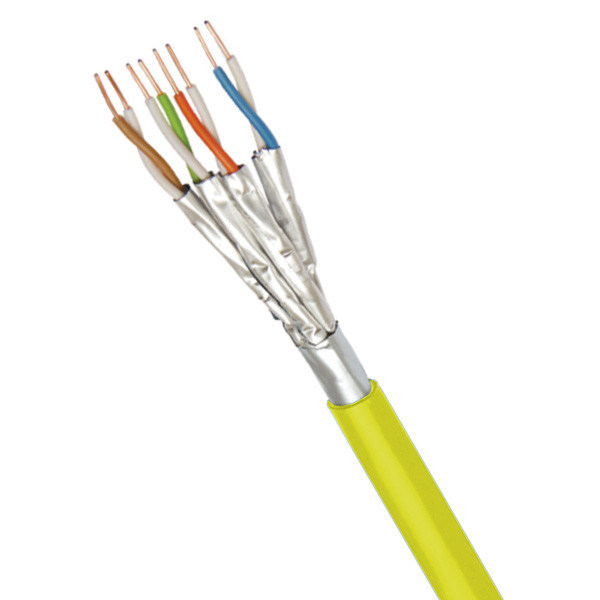

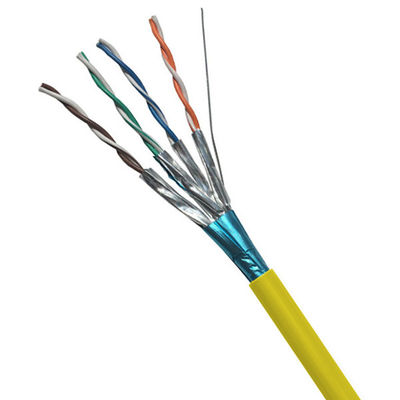

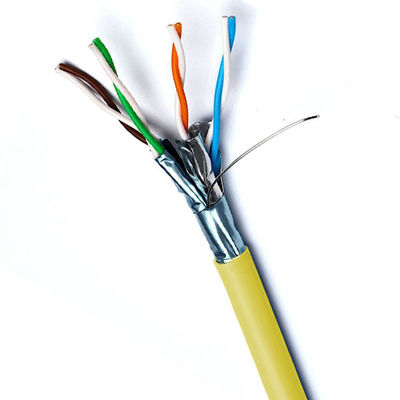

CAT6A 23AWG FFTP Yellow LSZH Ethernet Cable 500MHz for 10Gbps Data Transmission
| Product Name | CAT6A 23AWG FFTP Yellow LSZH Cable |
| Cable Type | FFTP |
| Category | CAT6A |
| Conductor Size | 23 AWG |
| Color | Yellow |
| Insulation Material | HDPE |
| Frequency | 500MHz |
| Jacket Material | LSZH |
| Length | 305m |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Colors | 1p: white + blue stripes, 2p: white + orange stripes, 3p: white + green stripes, 4p: white + brown stripes |
| Pair Twist | Variable lay lengths from 19.0mm to 27.0mm |
| Pair Shield | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket | LSZH, 60P, -20°C to 75°C operating temperature |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance Unbalance | ≤ 2% |
| Dielectric Strength | 1.00KV DC or 0.7 KV AC for 1 min (no breakdown) |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600pF / 100m MAX |
| Characteristic Impedance | 100 ± 5 Ω at 100MHz |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB/100m) | PS NEXT (Min dB/100m) |
|---|---|---|---|
| 4 | 3.8 | 66.27 | 63.27 |
| 100 | 19.13 | 45.3 | 42.3 |
| 250 | 31.07 | 39.33 | 36.33 |
| 500 | 45.26 | 34.82 | 31.82 |
