| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF6A-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
| Parameter | Specification |
|---|---|

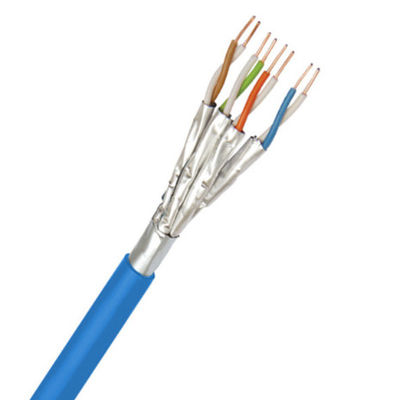

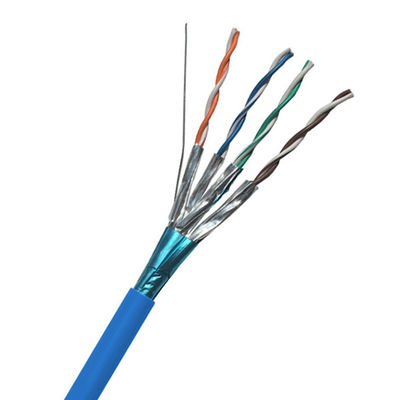

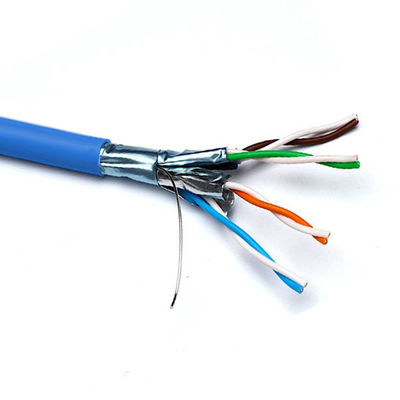

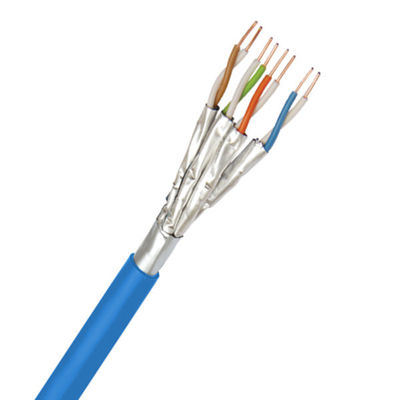

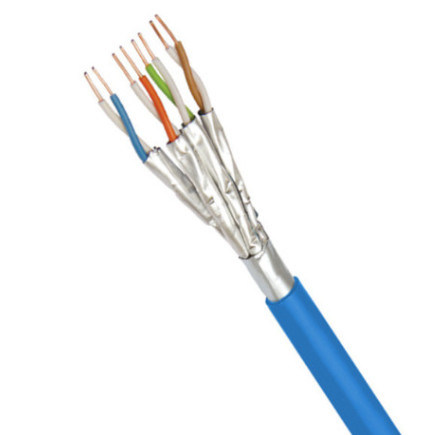

| Cable Type | FFTP (Foil Twisted Pair) |
| Category | CAT6A Ethernet Cable |
| Conductor Size | 23 AWG |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Length | 305m (1000Ft) |
| Color | Blue |
| Frequency | 500MHz |
| Data Transfer Rate | 10Gbps |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Shield | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket Thickness | 0.60-0.70mm |
| Operating Temperature | -20°C to 75°C |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB/100m) |
|---|---|---|
| 100 | 19.13 | 45.30 |
| 250 | 31.07 | 39.33 |
| 500 | 45.26 | 34.82 |
