10Gbps 500MHz CAT6A F FTP Cable 23AWG Solid Yellow Cable LSZH IEC60332-1 High Speed

Name: 10Gbps 500MHz CAT6A F FTP Cable 23AWG Solid Yellow Cable LSZH IEC60332-1 High Speed
Brand: Integrity Cable Co., Limited
SKU: ITI-CTF6A-011
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CTF6A-011
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Length:

500ft

Category:

CAT6A

Jacket Material:

LSZH

Conductor Size:

23 AWG

Color:

Blue

Bandwidth:

500 MHz

Cable Type:

FFTP

Frequency:

500MHz

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (

Highlight:

10Gbps FFTP CAT6A LSZH Cable

500MHz CAT6A F FTP Cable

23AWG FFTP CAT6A Cable

Product Description

10Gbps 500MHz CAT6A F FTP Cable 23AWG Solid Yellow Cable LSZH IEC60332-1 High Speed

Wholesale High-Speed CAT6A FFTP LSZH Cable

ITI-LINK presents the ITI-CTF6A-011, a premium CAT6A FFTP (Foil Foil Twisted Pair) cable designed for wholesale buyers requiring superior networking solutions. Available in 500ft rolls, this cable delivers reliable 10Gbps data transfer speeds with 500MHz bandwidth for high-density network environments.

Key Features

HDPE Insulation: Ensures exceptional electrical stability at CAT6A levels, minimizing signal interference and crosstalk

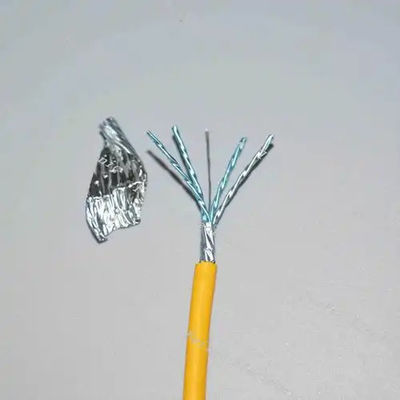

Dual-Layer FFTP Shielding: Superior protection against EMI/RFI interference in industrial environments
LSZH Jacket: Bright yellow, fire-resistant material meeting IEC60332-1 safety standards
23AWG Solid Conductors: Maintains stable 10Gbps connections up to 100 meters
Bulk Packaging: 500ft rolls for cost-effective large-scale deployments

Technical Specifications

Parameter	Value
Cable Type	FFTP
Category	CAT6A Ethernet Cable
Length	500Ft
Color	Yellow
Jacket Material	LSZH
Frequency	500MHz
Insulation Material	HDPE
Conductor Size	23 AWG

Electrical Properties

Property	Standard	Value
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 5%
Dielectric Strength Test Voltage	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m

Applications

Data Centers: High-density server rack cabling and data center backbones
Industrial Automation: PLCs, robotics, and sensor networks
Enterprise Networks: Campus-wide and office building infrastructure
Smart Buildings: Automation systems and security networks

Frequently Asked Questions

Q: What is the brand name of this Category 6A cable?

A: The brand name of this CAT6A cable is ITI-LINK.

Q: What is the model number of this CAT6A cable?

A: The model number of this CAT6A cable is ITI-CTF6A-011.

Q: Where is this CAT6A cable manufactured?

A: This CAT6A cable is manufactured in SHENZHEN.
