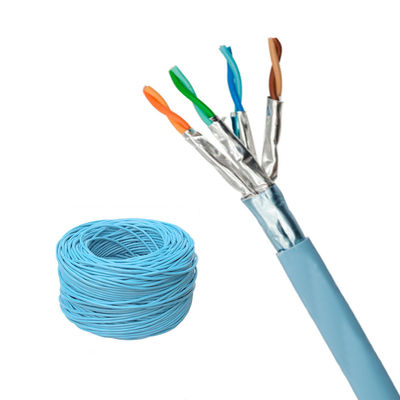

FFTP LSZH CAT6A F FTP Cable 10Gbps Network Cable For Long Run Installations

Brand Name:	ITI-LINK
Model Number:	ITI-CTF6A-013
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	1000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Category:

CAT6A

Cable Type:

FFTP

Jacket Material:

LSZH

Conductor Size:

23AWG

Length:

1000Ft

Frequency:

500MHz

Insulation Material:

HDPE

Color:

Blue

Packaging Details:

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

FFTP CAT6 LSZH network cable

CAT6A F FTP Cable 10Gbps

10Gbps long run network cable

Product Description

FFTP LSZH CAT6A F FTP Cable 10Gbps Network Cable For Long Run Installations

FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations. This ITI CTF6A 013 FFTP CAT6 LSZH 23AWG 1000Ft cable is engineered for demanding networks and installers needing long runs and safety. The FFTP CAT6 shielding and LSZH jacket protect against interference and fire hazards. The HDPE insulation plus 23AWG conductors preserve throughput and reliability for 10Gbps links. Installers and integrators choose ITI CTF6A 013 for proven CAT6 FFTP LSZH performance across factories, data centers and enterprise sites.

Key Features

LSZH safety jacket: Low Smoke Zero Halogen (LSZH) for public spaces and safer installs
FFTP CAT6 shielding: Overall foil design minimizes EMI and RFI ensuring signal integrity
23AWG solid copper: 23AWG conductors deliver stable 10Gbps throughput
HDPE insulation: Reduces crosstalk for consistent CAT6 performance
1000Ft spool: Long length reduces joins and speeds large deployments
Blue jacket: Blue LSZH color simplifies cable identification and maintenance
Backward compatibility: Compatible with Cat5e/Cat6 while offering FFTP CAT6 benefits

Technical Specifications

Construction Item	Description	Electrical Property
Conductor	Material: Bare Solid Copper (elongation: 19-24%) OD: 23AWG	Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m Resistance unbalance within a pair: ≤ 2%
Insulation	Material: PE Skin-Foam-Skin OD: 1.35 ±0.01 mm Average THK: 0.38 mm	Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m
Color	1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown	Characteristic impedance at 100MHz: 100 ± 5 Ω Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min No breakdown

Applications

Industrial factories with high EMI use FFTP CAT6 LSZH ITI CTF6A 013 for reliable 10Gbps connectivity
Data center horizontal runs choose CAT6 FFTP LSZH 1000Ft ITI CTF6A 013 for long length and safety
Enterprise office cabling prefer LSZH CAT6 FFTP ITI CTF6A 013 to reduce smoke risk in shared spaces
Security CCTV and network surveillance use FFTP CAT6 LSZH for EMI immunity and stable video links
ISP campus and building backbone installs deploy ITI CTF6A 013 CAT6 FFTP LSZH for professional grade networks
