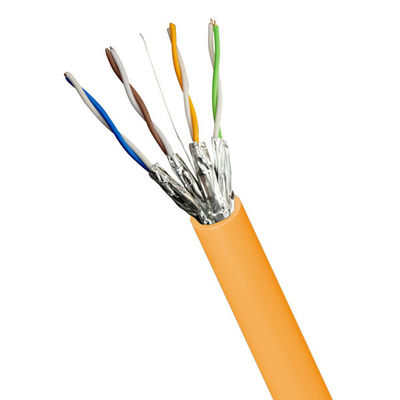

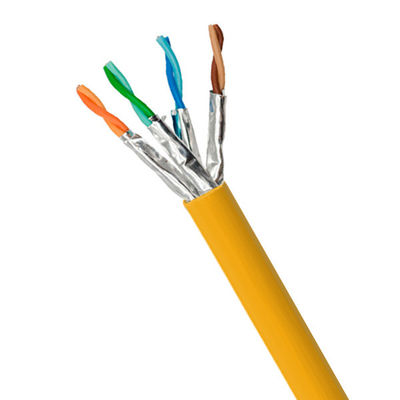

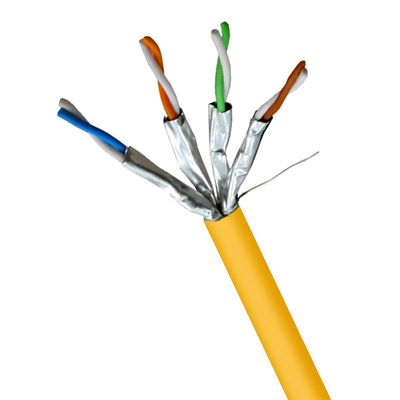

1000FT 23AWG FFTP CAT6A F FTP Cable LSZH CPR 10Gbps Ethernet Cable

Name: 1000FT 23AWG FFTP CAT6A F FTP Cable LSZH CPR 10Gbps Ethernet Cable
Brand: Integrity Cable Co., Limited
SKU: ITI-CTF6A-007
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CTF6A-007
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	1000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Category:

CAT6A

Color:

Orange

Insulation Material:

HDPE

Conductor Size:

23 AWG

Jacket Material:

LSZH

Frequency:

500MHz

Length:

1000 Ft

Cable Type:

UFTP

Packaging Details:

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

1000FT CAT6A F FTP Cable

CAT6A F FTP Cable 500MHz

LSZH 10gbps ethernet cable

Product Description

1000FT 23AWG FFTP CAT6A F FTP Cable LSZH CPR 10Gbps Ethernet Cable

Premium Cat6A U/FTP Ethernet Cable with LSZH Jacket

This high-performance Cat6A U/FTP 23AWG LSZH CPR Dca-s2,d2,a1 Ethernet cable delivers 10Gbps speeds with a 500MHz frequency rating. The 1000ft length makes it ideal for large-scale network installations requiring extended reach without compromising signal integrity.

Key Features

High-Speed Performance: Supports 10Gbps data transfer rates with 500MHz frequency
Premium Construction: 23AWG bare solid copper conductors with PE Skin-Foam-Skin insulation
Enhanced Safety: LSZH (Low-Smoke Zero-Halogen) jacket for reduced toxic emissions in case of fire
Superior Shielding: U/FTP (Foiled Twisted Pair) design minimizes crosstalk and EMI interference
Regulatory Compliance: Meets CPR Dca-s2,d2,a1 standards for construction applications
Easy Identification: Bright orange color for quick visual recognition in cable management
Backward Compatible: Works with Cat5e and Cat6 network equipment

Technical Specifications

Parameter	Specification
Cable Type	U/FTP
Category	Cat6A
Length	1000Ft
Jacket Material	LSZH
Frequency	500MHz
Color	Orange
Insulation Material	HDPE
Conductor Size	23AWG

Detailed Construction Specifications

Construction Item	Description
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Insulation Material	PE Skin-Foam-Skin
Insulation Resistance	>1500 MΩ / 100m
Pair Shield	Polyester/Aluminium (PET/ALU) with ≥ 115% coverage
Jacket Thickness	0.60 ~ 0.70mm
Operating Temperature	-20°C to 75°C

Electrical Properties

Property	Value
Single Conductor DC Resistance (Max, 20°C)	9.5 Ω/100m
Conductor DC Resistance Imbalance (Max)	≤2%
Pairs DC Resistance Imbalance (Max)	≤4%
Insulation Resistance (Min)	5000 MΩ.km
Pair To Ground Capacitance Unbalance (Max)	160 pF/100m
Delay Skew (Max)	45 ns/100m

Transmission Performance

Frequency (MHz)	Attenuation (Max dB/100m)	NEXT (Min dB)	PS NEXT (Min dB)
100	19.13	45.3	42.3
250	31.07	39.33	36.33
500	45.26	34.82	31.82

Applications

This high-performance Cat6A cable is ideal for:

Enterprise network backbones and data centers
High-speed 10Gbps network connections
Video surveillance and security systems
Industrial automation and control systems
Healthcare facilities and hospitals
Educational institutions and campus networks
Commercial buildings requiring CPR-compliant cabling

Frequently Asked Questions

Q: What is the brand name of the CAT6A Cable?

A: The brand name is ITI-LINK.

Q: What is the model number?

A: Model number is ITI-CTF6A-007.

Q: Where is the cable manufactured?

A: Manufactured in Shenzhen, China.

Q: What is the maximum data transfer rate?

A: Supports up to 10Gbps data transfer rates.

Q: Is this cable suitable for outdoor use?

A: No, this cable is designed for indoor use only.
