| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF6A-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
| Attribute | Value |
|---|---|

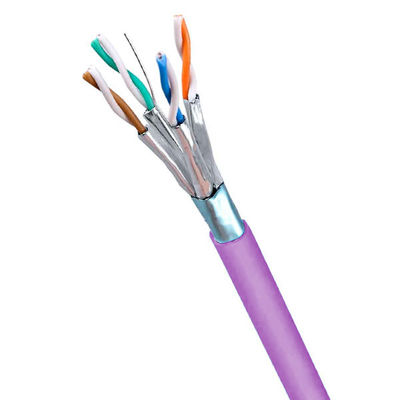

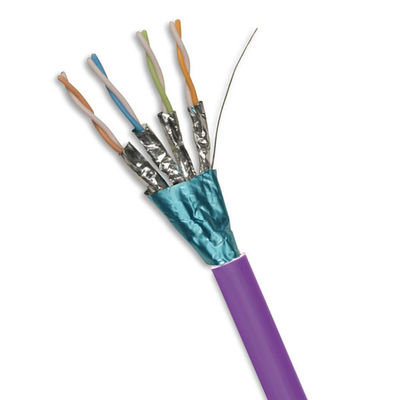

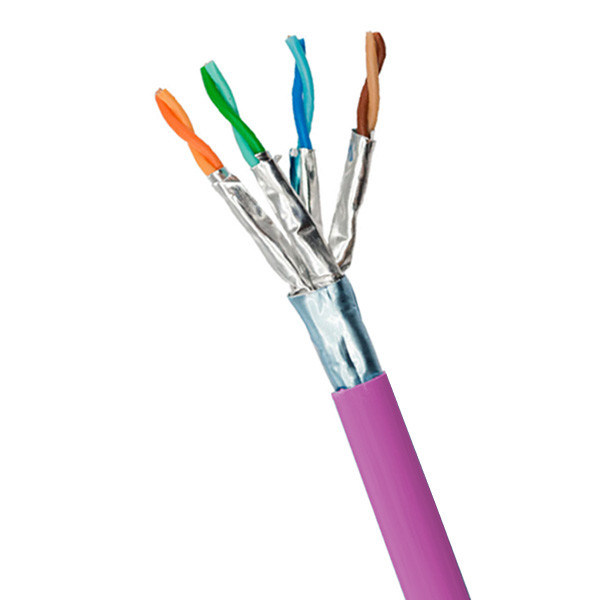

| Category | CAT6A Ethernet Cable |
| Cable Type | FFTP |
| Color | Purple |
| Length | 1000ft (305m) |
| Frequency | 500MHz |
| Conductor Size | 23 AWG |
| Insulation Material | HDPE |
| Jacket Material | LSZH |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE |
| Insulation Resistance | >1500 MΩ / 100m |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Jacket Hardness | 81± 3 |
| Shield Construction | Pair Shield & Aluminium Foil (≥ 115% coverage) |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 100 | 19.13 | 45.3 | 42.3 |
| 250 | 31.07 | 39.33 | 36.33 |
| 500 | 45.26 | 34.82 | 31.82 |
