| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF7A-002 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Attribute | Value |
|---|---|

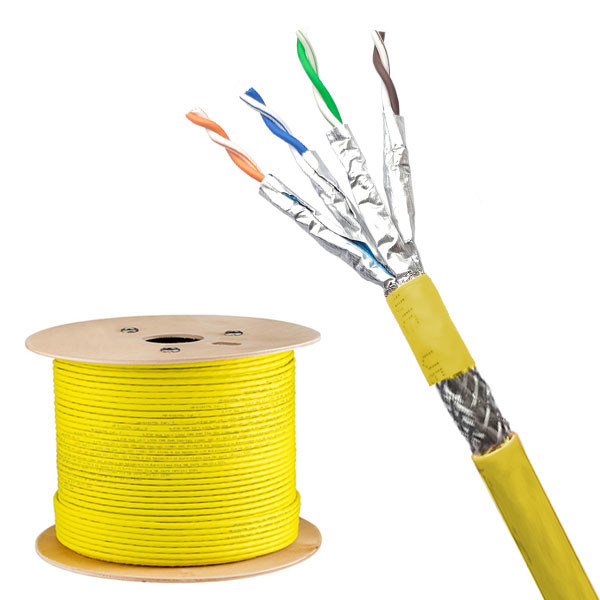

| Cable Type | SFTP |
| Cable Length | 1000Ft |
| Conductor Material | Copper |
| Conductor Size | 23 AWG |
| Jacket Material | LSZH |
| Category | CAT7A |
| Frequency | 1000MHz |
| Color | Yellow |

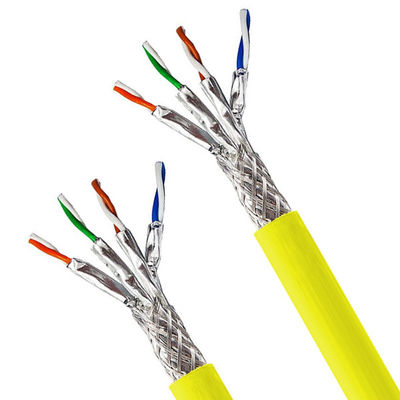

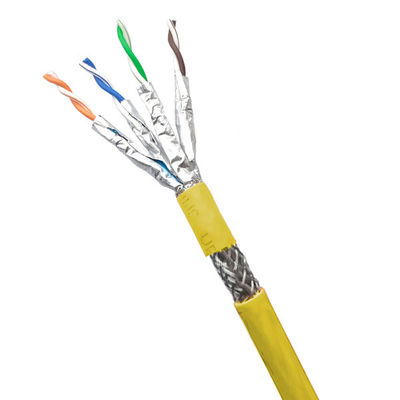

| Component | Specification |
|---|---|
| Conductor | 23 AWG bare solid copper |
| Insulation | PE Skin-Foam-Skin, 1.45 ±0.01 mm OD |
| Pair Twist | Variable lay lengths (19.0-25.0 mm) |
| Pair Shield | Polyester/Aluminium (PET/ALU) ≥ 115% coverage |
| Braid | Aluminum-magnesium braid ≥ 40% coverage |
| Jacket | LSZH, 8.5 ± 0.2 mm OD, 81±3 hardness |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.7 | 552 | 25 |
| 100 | 18.5 | 538 | 20.1 |
| 250 | 29.7 | 536 | 17.3 |
| 1000 | 61.9 | 535 | 15.1 |
