| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF7A-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

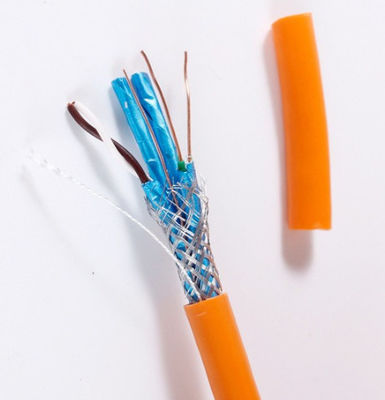

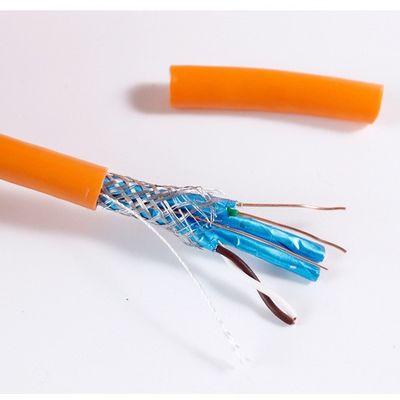

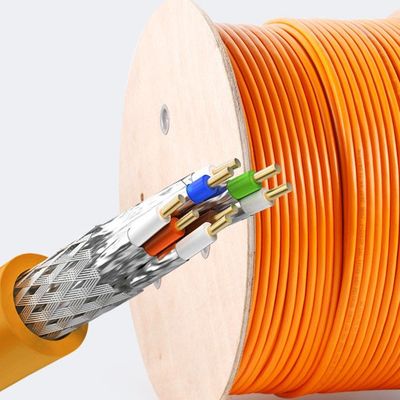

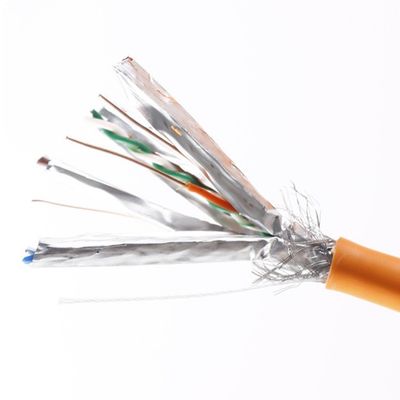

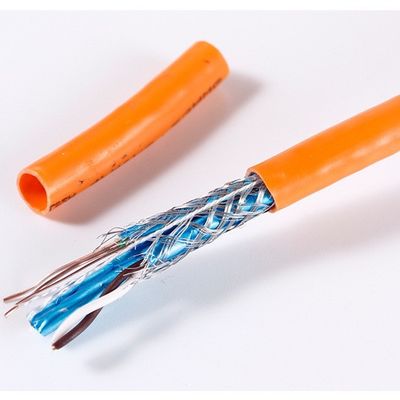

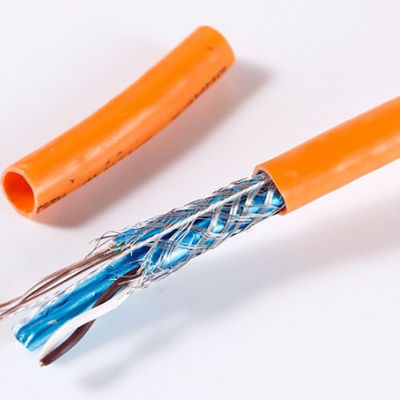

The Cat7A SFTP Shielded Ethernet Cable is a high-performance networking solution designed specifically for demanding data center environments. Featuring 23 AWG pure copper conductors and 1000MHz frequency capability, this cable delivers reliable 10Gbps data transfer with minimal interference.
| Parameter | Specification |
|---|---|
| Category | CAT7A |
| Cable Type | SFTP |
| Conductor Material | Pure Copper |
| Conductor Size | 23 AWG |
| Frequency | 1000 MHz |
| Data Rate | 10Gbps |
| Jacket Material | PVC |
| Cable Length | 305 Meters |
| Color | Orange |
| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | PE Skin-Foam-Skin |
| Pair Shield | Polyester/Aluminium (PET/ALU) ≥ 115% coverage |
| Braid | Aluminum-magnesium braided (≥ 40% coverage) |
| Jacket | PVC, 50P, -20~75℃ |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | Return Loss (Min dB) |
|---|---|---|---|
| 10 | 5.8 | 78.0 | 25.0 |
| 100 | 18.5 | 75.4 | 20.1 |
| 250 | 29.7 | 69.4 | 17.3 |
| 500 | 42.8 | 64.9 | 17.3 |
| 1000 | 61.9 | 60.4 | 15.1 |
This high-performance Cat7A cable is ideal for:
