| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF8-005 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

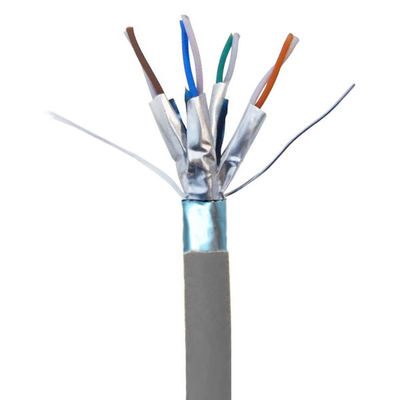

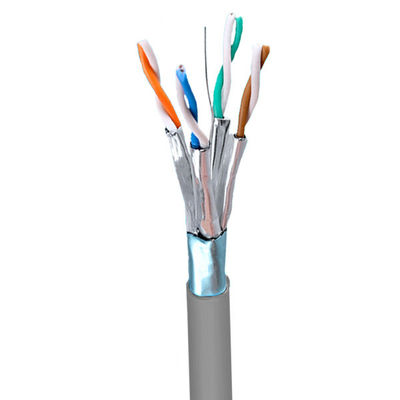

| Product Name | CAT8 LAN Cable |
| Cable Category | CAT8 |

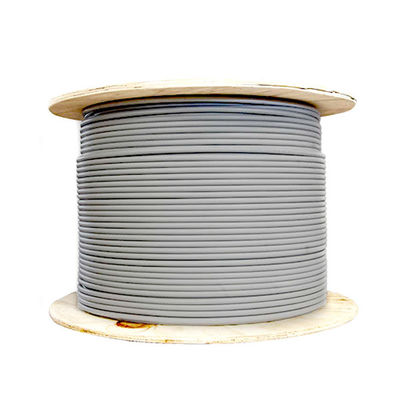

| Length | 500ft |
| Conductor Material | Copper |
| Conductor Gauge | 22 AWG |
| Shielding | FTP |
| Bandwidth | 2000 MHz |
| Jacket Material | LSZH |
| Jacket Color | Gray |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Colors | 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
| Pair Shield | Polyester/Aluminium (PET/ALU) ≥ 200% coverage |
| Braid | AL-MG ≥ 40% coverage |
| Jacket | PVC, 50P, -20~75℃, Gray |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | ≤ 0.2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
