LSZH Yellow Jacket FFTP CAT8 Cable 22AWG 2000MHz Ethernet High Speed Cable 1000Ft

Name: LSZH Yellow Jacket FFTP CAT8 Cable 22AWG 2000MHz Ethernet High Speed Cable 1000Ft
Brand: Integrity Cable Co., Limited
SKU: ITI-CTF8-004
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CTF8-004
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	800pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Bandwidth:

2000 MHz

Conductor Material:

Copper

Length:

1000 Ft

Shielding:

F/FTP

Conductor Gauge:

22AWG

Jacket Material:

LSZH

Cable Category:

CAT8

Jacket Color:

Yellow

Packaging Details:

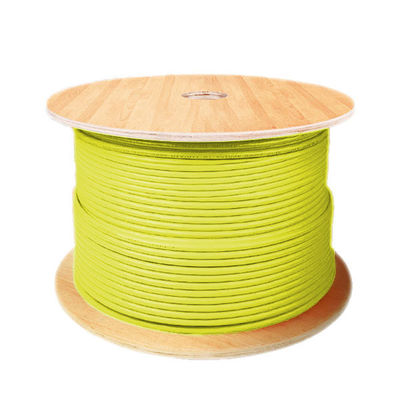

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

LSZH FFTP CAT8 Cable

22AWG FFTP CAT8 Cable

1000Ft ethernet high speed cable

Product Description

LSZH Yellow Jacket FFTP CAT8 Cable 22AWG 2000MHz Ethernet High Speed Cable 1000Ft

Product Overview

The CAT8 FTP 22AWG 2000MHz low smoke halogen-free Ethernet high-speed cable features a yellow sheath and excellent FTP shielding performance. Designed to prevent external interference and crosstalk, this cable reduces noise and signal attenuation for stable, high-speed internet connections.

Key Features

High-performance 22AWG copper conductors - Finer than typical 24AWG with stronger conductivity and durability
FTP shielding - Minimizes interference for reliable data transmission
LSZH (Low Smoke Halogen Free) jacket - Environmentally friendly with minimal smoke and no toxic emissions in case of fire
2000MHz bandwidth - Supports high-speed data transmission up to 40Gbps
1000Ft length - Suitable for extensive network installations
Distinct yellow color - Easy identification in complex cable environments

Technical Specifications

Parameter	Value
Length	1000Ft
Bandwidth	2000 MHz
Shielding	FTP
Conductor Material	Copper (22 AWG)
Jacket Material	LSZH
Cable Category	Cat8
Jacket Color	Yellow
Maximum Transmission Speed	40Gbps

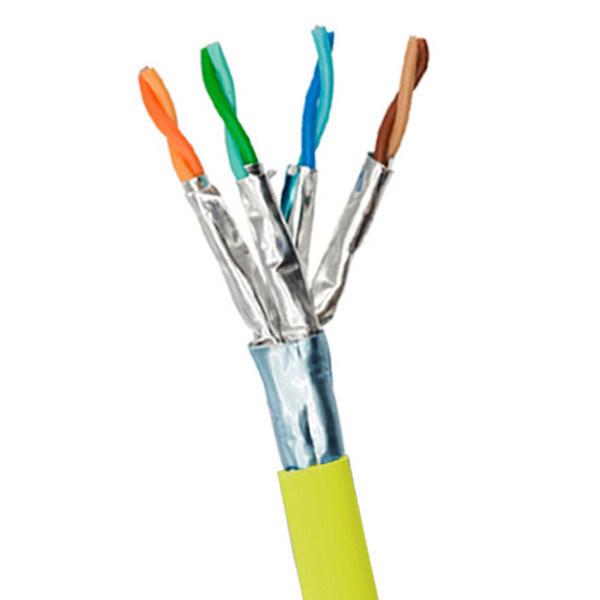

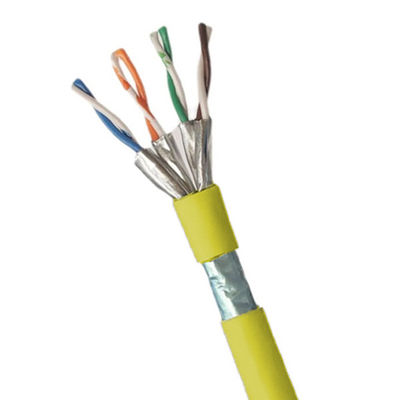

Construction Details

Component	Specification
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Insulation Material	PE Skin-Foam-Skin
Pair Shield	Polyester/Aluminium (PET/ALU) ≥ 200% coverage
Braid	AL-MG ≥ 40% coverage
Jacket Material	PVC, 50P, -20~75℃

Electrical Properties

Property	Value
Conductor Resistance at 20°C	≤ 5.6 Ω / 100m
Resistance unbalance within a pair	≤ 0.2%
Insulation Resistance	>1500 MΩ / 100m
Mutual capacitance	5600 pF / 100m MAX
Characteristic impedance at 100MHz	100 ± 15 Ω

Applications

Home and office networks for connecting computers, printers, routers, and switches
Data centers and server rooms for high-speed data transfer between servers
Gaming setups requiring fast, reliable connections with minimal lag
High-definition video streaming and online conferences
Outdoor installations including security cameras and access points

Frequently Asked Questions

Q: What is the brand name of the product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-CTF8-004.

Q: Where is this product manufactured?

A: This product is manufactured in SHENZHEN.

Q: What type of cable is this?

A: This is a FFTP CAT8 cable.

Q: What is the maximum transmission speed of this cable?

A: This cable supports a maximum transmission speed of 40Gbps.
