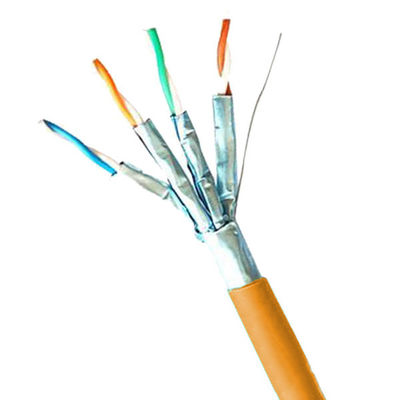

CAT8 FFTP Orange PVC Jacket Cable For 22AWG 40Gbps Data Center Cable

Name: CAT8 FFTP Orange PVC Jacket Cable For 22AWG 40Gbps Data Center Cable
Brand: Integrity Cable Co., Limited
SKU: ITI-CTF8-002
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CTF8-002
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	800pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Length:

1000 Ft

Conductor Gauge:

22 AWG

Jacket Material:

PVC

Jacket Color:

Orange

Bandwidth:

2000 MHz

Conductor Material:

Copper

Cable Category:

CAT8

Shielding:

FTP

Packaging Details:

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

Orange pvc jacket cable

FFTP pvc jacket cable

22AWG pvc jacket wire

Product Description

CAT8 FFTP Orange PVC Jacket Cable For 22AWG 40Gbps Data Center Cable

High-Performance Network Cable Overview

The CAT8 FTP 22AWG Orange PVC Jacket Cable delivers exceptional performance for demanding network applications. Its bright orange PVC jacket provides high visibility in complex installations while offering superior protection against physical damage.

Key Features

Supports blazing-fast speeds up to 40Gbps with 2000MHz bandwidth
Reliable data transmission up to 30 meters distance
22AWG solid copper conductors for optimal signal integrity
FTP shielding for superior EMI and crosstalk protection
1000ft length for flexible network deployment
High-visibility orange PVC jacket for easy identification
Backward compatible with CAT5e/CAT6/CAT7 standards

Technical Specifications

Cable Category	CAT8 LAN Cable
Jacket Material	PVC
Jacket Color	Orange
Length	1000Ft
Conductor Material	Copper
Conductor Gauge	22AWG
Shielding	FTP
Bandwidth	2000MHz

Construction Details

Construction Item	Description
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Insulation Material	PE Skin-Foam-Skin
Pair Identification	Color-coded with white stripes
Pair Shield	Polyester/Aluminium (PET/ALU) ≥200% coverage
Braid	AL-MG ≥40% coverage
Jacket	PVC, 50P, -20~75℃

Electrical Properties

Conductor Resistance at 20°C	≤ 5.6 Ω / 100m
Resistance unbalance within a pair	≤ 0.2%
Insulation Resistance	>1500 MΩ / 100m
Mutual capacitance	5600pF / 100m MAX
Characteristic impedance at 100MHz	100 ± 15 Ω

Applications

This high-performance CAT8 cable is ideal for:

Data center interconnections
Enterprise network backbones
High-bandwidth server rooms
4K/8K video streaming setups
Professional gaming environments
Industrial network installations

Frequently Asked Questions

Q: What is the brand name of this CAT8 cable?

A: The brand name of this CAT8 cable is ITI-LINK.

Q: What is the model number of this CAT8 cable?

A: The model number of this CAT8 cable is ITI-CTF8-002.

Q: Where is this CAT8 cable manufactured?

A: This CAT8 cable is manufactured in SHENZHEN.

Q: What is the maximum data transmission speed of this CAT8 cable?

A: This CAT8 cable is capable of transmitting data at speeds of up to 40Gbps.

Q: Is this CAT8 cable backward compatible with previous versions of Ethernet?

A: Yes, this CAT8 cable is backward compatible with previous versions of Ethernet, such as CAT5e and CAT6.
