| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF8-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

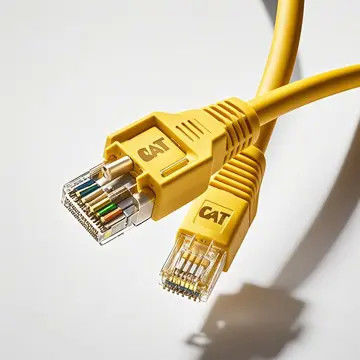

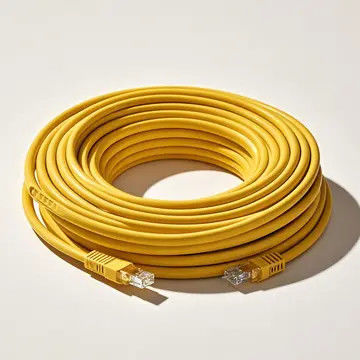

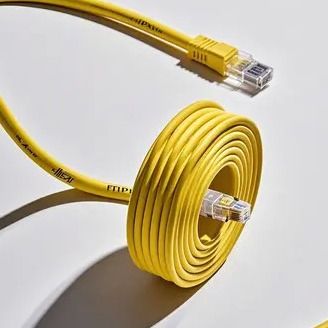

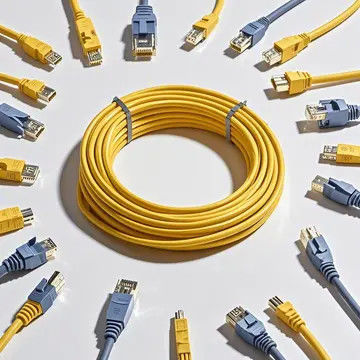

This high-performance FFTP CAT8 Ethernet cable is designed for modern networking environments, featuring 22 AWG copper conductors and FTP shielding for reliable, high-speed data transmission.
| Parameter | Value |
|---|---|
| Shielding | FTP |
| Conductor Gauge | 22 AWG |
| Jacket Material | PVC |
| Cable Category | CAT8 |
| Jacket Color | Yellow |
| Length | 305 Meters |
| Bandwidth | 2000 MHz |
| Conductor Material | Copper |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Insulation Material | PE Skin-Foam-Skin |
| Insulation Resistance | >1500 MΩ / 100m |
| Pair Shield | Polyester/Aluminium (PET/ALU) with ≥ 200% coverage |
| Braid | AL-MG with ≥ 40% coverage |
| Jacket Material | PVC, 50P, -20~75℃ |
