| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF8-010 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

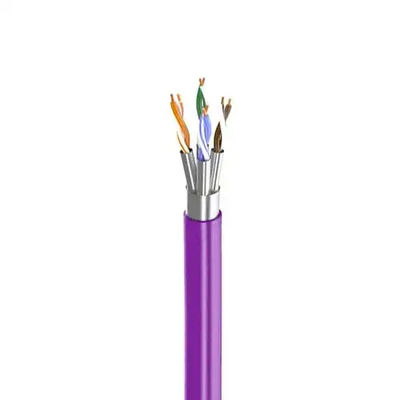

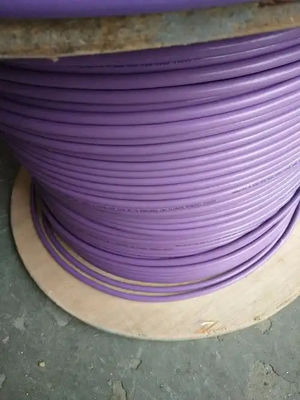

| Cable Category | CAT8 LAN Cable |
| Jacket Material | LSZH |
| Jacket Color | Purple |
| Length | 50 meters |
| Conductor Material | Copper |
| Conductor Gauge | 22AWG |
| Shielding | FTP |
| Bandwidth | 2000MHz |
| Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | ≤ 0.2% |
| Dielectric Strength Test Voltage | 1.00KV DC or 0.7 KV AC for 1 min |
| Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Mutual capacitance | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
