| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF8-009 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

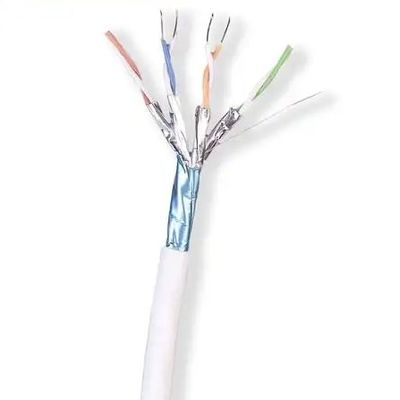

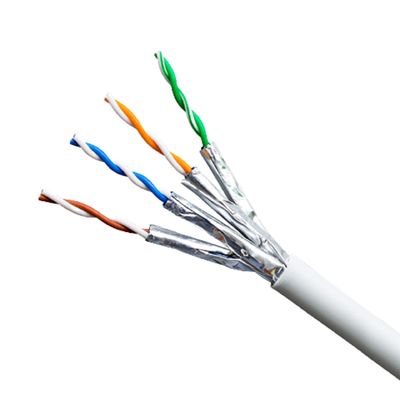

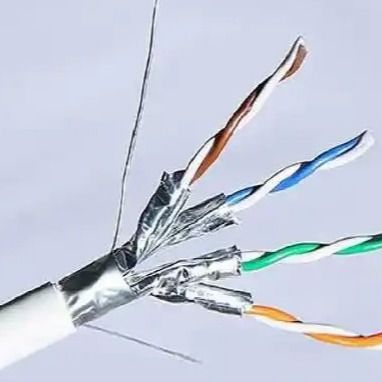

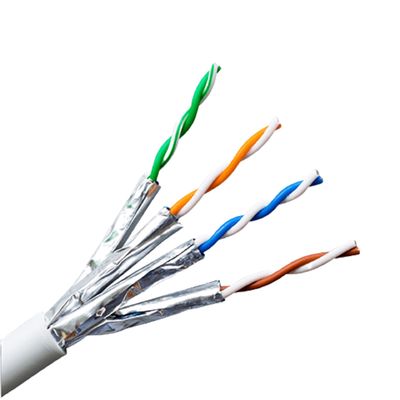

ITI-LINK presents the ITI-CTF8-009, an FFTP CAT8 Cable engineered to meet the stringent requirements of modern networking systems. This high-performance cable delivers reliable, high-speed connectivity for demanding applications.
| Cable Category: | CAT8 LAN Cable |
| Jacket Material: | LSZH |
| Jacket Color: | White |
| Length: | 50 meters |
| Conductor Material: | Copper |
| Conductor Gauge: | 22AWG |
| Shielding: | FTP |
| Bandwidth: | 2000MHz |
| Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | ≤ 0.2% |
| Dielectric Strength Test Voltage | No breakdown at 1.00KV DC or 0.7 KV AC for 1 min |
| Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Mutual capacitance | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Spark Test | 2000 ± 250VOC |
