| Brand Name: | ITI-LINK |
| Model Number: | ITI-C6AU-010 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
High-performance networking cable engineered for seamless integration in structured cabling systems and high-bandwidth networks, delivering reliable connectivity for both commercial and residential applications.
The UTP CAT6A Cable is engineered with advanced materials and superior construction to meet modern data transmission demands. Supporting data rates up to 10 Gigabits per second over 100 meters, it represents a significant upgrade from traditional Cat5e cables while offering easier installation than shielded alternatives.

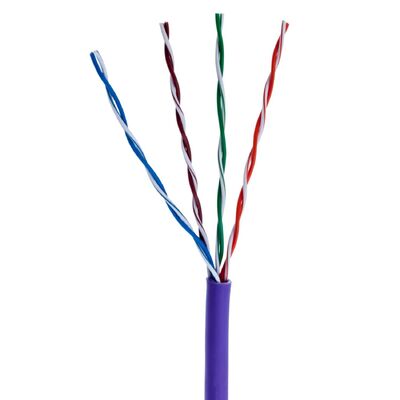

Constructed with four twisted pairs of pure copper conductors and enhanced insulation, this cable minimizes crosstalk and electromagnetic interference, ensuring stable performance even in electrically noisy environments. Its unshielded design provides greater flexibility for complex wiring setups while maintaining compliance with TIA/EIA-568 standards.
| Parameter | Specification |
|---|---|
| Cable Type | Unshielded Twisted Pair (UTP) |
| Category | Cat 6 Ethernet Patch Cable |
| Conductor Material | Pure Copper |
| Conductor Size | 23 AWG |
| Number of Pairs | 4 Pairs |
| Insulation Material | PE (Polyethylene) |
| Jacket Material | LSZH / PVC |
| Transmission Frequency | Up to 500 MHz |
| Maximum Data Rate | 10 Gbps |
| Maximum Length | 100 meters |
| Operating Temperature | -20°C to 60°C |
This certified cable meets demanding requirements for enterprise networking, data centers, office environments, and high-performance residential networks. Its robust construction makes it suitable for industrial installations where durability and long-term reliability are essential.
The ITI-LINK UTP CAT6A Cable (model ITI-C6AU-010) carries UL, ETL, CSA, RCM, TUV, CPR, CE, and RoHS certifications, ensuring compliance with international safety and quality standards.
For optimal performance, avoid bending beyond the minimum bend radius and keep cables away from strong electromagnetic sources like fluorescent lights and motors. Proper termination with compatible CAT6A connectors is essential to achieve full performance capabilities.
Cables are coiled and secured with reusable ties, individually packaged in anti-static, moisture-resistant bags. Sturdy corrugated boxes protect during transit, with bulk orders palletized and shrink-wrapped for additional stability. All shipments include tracking information.
