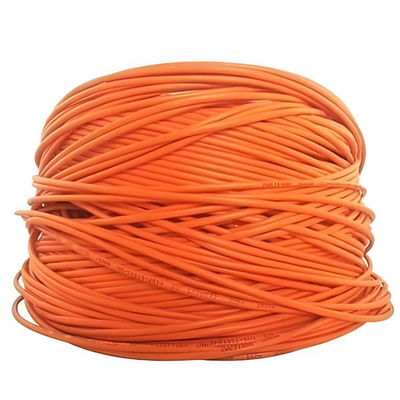

1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable

Brand Name:	ITI-LINK
Model Number:	ITI-CABLE-001
MOQ:	1000pcs
Price:	$50-100/PCS
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Color:

Orange

Data Transfer Rate:

100 Mbps

Length:

1000 Ft

Jacket Material:

PVC

Frequency:

100 MHz

Application:

100Base-TX/100Base-T4/100VG-AnyLan/ATM

Cable Type:

U/UTP

Conductor Size:

24 AWG

Certifications:

UL, ETL, RCM, CPR, CSA, CE, RoHS

Conductor AMaterial:

Bare Copper

Packaging Details:

Color Box+Packing Box 36*36*21cm

Highlight:

1000FT high speed network cable

Cat5e high speed network cable

350MHz 1000ft cat5e

Product Description

1000FT Cat5e UTP Extend To 350MHz Orange PVC Copper High Speed Network Cable

This Category 5e Ethernet cable provides 100MHz bandwidth and a transmission rate of 100Mbps within a distance of 90 meters. The product has passed TIA-568.2-D CAT5e Perm.link 90M certification.

This Category 5e twisted pair cable is suitable for indoor horizontal workspace cabling and indoor LAN cabling, meeting and significantly exceeding the specifications of Category 5e systems. It uses high-quality oxygen free copper as the transmission conductor for reliable and excellent electrical performance.

Key Features:

Bare solid copper conductor
100MHz bandwidth
RoHs/REACH Complied PVC Jacket
Rate temperature: 60℃ - 75℃
Installation Temperature: -30℃ to +50℃
Complies to ANSI/TIA-568-B.2 & ISO/EC11801
Certifications: CE, RoHS, TUV, UL, CPR, ETL, RCM, ISO9001

Specifications:

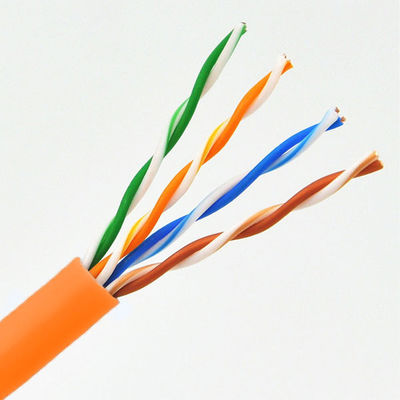

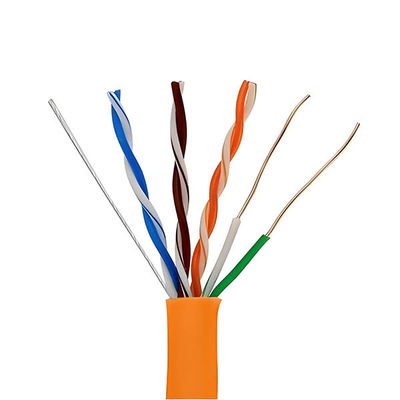

Product Description	Cat 5e UTP 4 X 2 X 24AWG PVC
Conductor Material	Bare Solid Copper (elongation: 19 ~ 24%)
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Insulation Material	HDPE 8303
Insulation Resistance	>1500 MΩ / 100m
Mutual Capacitance	5600 pF / 100m MAX
Characteristic Impedance at 100MHz	100 ± 15 Ω
Jacket Material	PVC, 45P, -20~75℃
Jacket Color	Orange

Electrical Properties:

Property	Standard	Value
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 2%
Dielectric Strength Test Voltage	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m

Transmission Properties (CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013):

Frequency (MHz)	Attenuation (Max) dB/100m	Propagation Delay ns/100m	Return Loss (Min) dB	NEXT (Min) dB
4	4.05	552	23.01	56.27
100	21.98	537.6	20.11	35.3
350	23.35	542.07	22.1	36.45

Installation Notices:

Open the packaging carefully and handle the products gently.
Follow wiring standards during construction, avoiding excessive bending or tying of cables.
When making RJ45 connectors, follow T568B or T568A standards for correct wire sequence.
Limit single cable runs to 100 meters for optimal performance.
Ensure proper grounding for shielded network cables during installation.

Applications:

Widely used in office buildings, schools, research institutions, airports, high-speed trains, hospitals, hotels, industries, shopping malls, and supermarkets.

Frequently Asked Questions

Q1. Can I order samples of LAN cables?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: 3-5 days for sample preparation, 8-10 working days for mass production.

Q3. Do you have a minimum order quantity limit for network cable orders?

A: Low MOQ, 1pc for sample checking is available.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty for our products.
