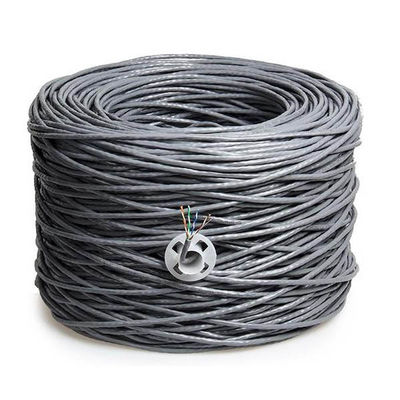

Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT

Brand Name:	ITI-LINK
Model Number:	ITI-CABLE-003
MOQ:	1000pcs
Price:	$50-100/PCS
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Color:

According To The Customer’s Requirements

Data Transfer Rate:

100 Mbps

Length:

1000 Ft

Connector Type:

RJ45

Frequency:

100 MHz

Application:

100Base-TX/100Base-T4/100VG-AnyLan/ATM

Cable Type:

U/UTP CMR

Conductor Size:

24 AWG

Certifications:

UL, ETL, RCM, CPR, CSA

Conductor AMaterial:

Bare Copper

Compatibility:

Ethernet

Packaging Details:

Color Box+Packing Box 36*36*21cm

Highlight:

24AWG 1000 feet cat5e

Pure Copper 1000 feet cat5e

1000FT cat5e 350mhz cmr

Product Description

Solid Pure Copper Cat5e UTP CMR Cable 24AWG Extend To 350MHz 1000FT

Product Overview

This CMR flame-retardant Category 5e Ethernet cable provides 100MHz bandwidth within a distance of 90 meters, with typical application speeds of 100Mbps. Designed for vertical trunk wiring in buildings, it ensures reliable communication signal transmission between floors.

Key Features

High-quality oxygen-free copper conductors for reliable transmission

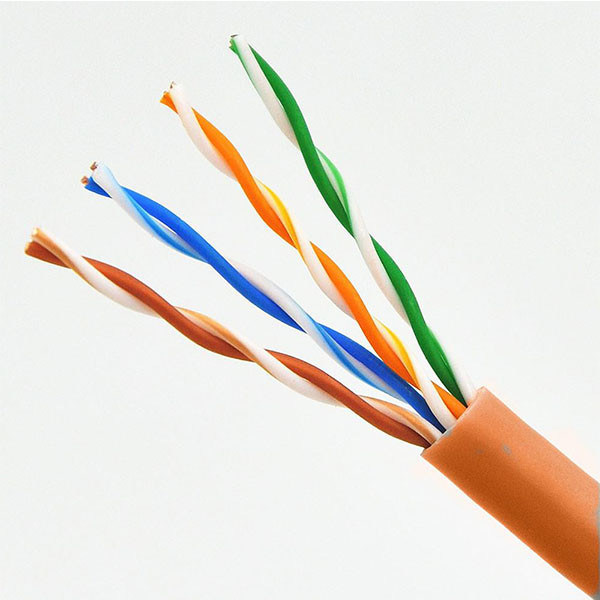

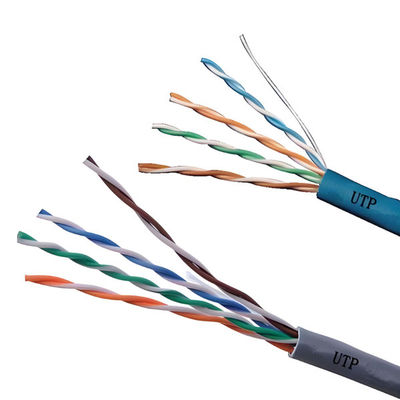

4 pairs of 8-core twisted pair wires meeting standard requirements
CMR flame-retardant rating for vertical wiring applications
Suitable for network cabling in office buildings, shopping malls, and hotels
Stable performance with transmission distances up to 90 meters

Construction Details

Inner Conductor	Composition: Solid Bare Copper (BC)
Insulation	Composition: High density Polyethylene (HDPE)
Filler	Type: Ripcord, Composition: Polyester
Jacket	Composition: PVC, Rated 60 or 75℃, Color: Customizable

Technical Specifications

Construction Item	Description	Electrical Property
Conductor Material	Bare Solid Copper (elongation: 19-24%)	Conductor Resistance at 20°C ≤ 9.5 Ω/100m
Conductor OD	24 AWG	Resistance unbalance within a pair ≤ 2%
Insulation Material	HDPE 8303	Insulation Resistance >1500 MΩ/100m
Characteristic Impedance	100 ± 15 Ω at 100MHz	Dielectric Strength: 1.00KV DC or 0.7 KV AC for 1 min

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (MAX ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
4	4.05	552	23.01	56.27
100	21.98	537.6	20.11	35.3

Installation & Usage Notes

Inspect product carefully after unpacking
Follow wiring specifications and avoid excessive bending
Use T568B or T568A standard for RJ45 connectors
Recommended maximum single cable length: 100 meters

Applications

CMR flame-retardant Cat5e cables are ideal for vertical mainline subsystems in buildings, including elevator shafts and inter-floor wiring channels. They provide excellent network connectivity for office buildings, shopping malls, and hotels, ensuring stable and secure data transmission between floors.

Frequently Asked Questions

Q1. Can I order samples of Lan cables?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: Sampling takes 3-5 days, while mass production takes 15-45 days.

Q3. What is the minimum order quantity?

A: Generally starts at 1000PCS, varying by product.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty for our products.
