24AWG Cat5e UTP CM PVC Plenum Cable Copper Gray High Speed Ethernet Cable 1000FT

Brand Name:	ITI-LINK
Model Number:	ITI-CABLE-005
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Color:

GRAY

Data Transfer Rate:

100 Mbps

Length:

1000 Ft

Application:

100Base-TX/100Base-T4/100VG-AnyLan/ATM

Conductor Size:

24 AWG

Certifications:

UL, ETL, RCM, CPR, CSA, CE, RoHS

Conductor AMaterial:

Bare Copper

Cable Type:

U/UTP

Jacket Material:

PVC

Flame Retardant Grade:

Packaging Details:

Color Box+Packing Box 36*36*21cm

Highlight:

UTP plenum pvc

Cat5e plenum pvc

24AWG high speed ethernet cable

Product Description

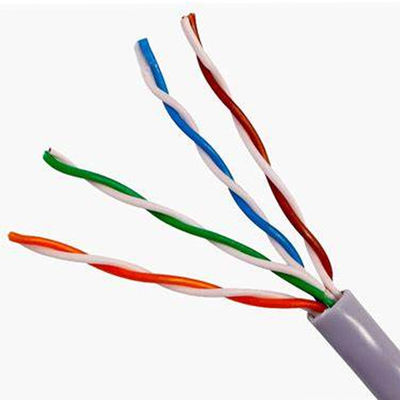

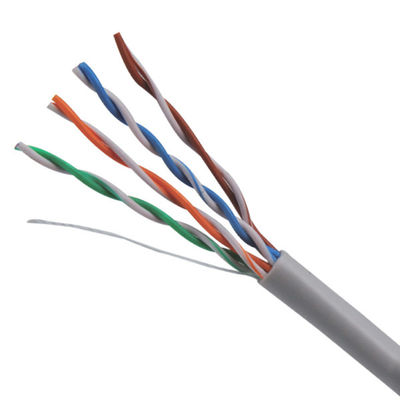

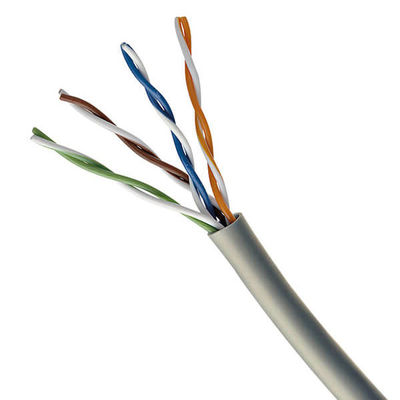

24AWG Cat5e UTP CM PVC Plenum Cable Copper Gray High Speed Ethernet Cable 1000FT

Product Overview

This Cat5e UTP CM PVC Plenum Cable features 24AWG solid copper conductors with PVC jacket, designed for high-speed network applications up to 100MHz. Compliant with ANSI/TIA-568-B.2 & ISO/EC11801 standards, it meets CE, RoHS, TUV, UL, CPR, ETL, RCM, and ISO9001 certifications.

Key Features

Bare solid copper conductor (24AWG)
100MHz bandwidth capacity
PVC jacket rated for 60-75℃ operation
Installation temperature range: -30℃ to +50℃
CM flame retardant rating for enhanced safety
Four pairs of precision twisted copper wires
Supports Ethernet transmission speeds up to 100Mbps

Construction Details

Component	Specification
Inner Conductor	Solid Bare Copper (BC)
Insulation	High density Polyethylene (HDPE)
Filler	Polyester Ripcord
Jacket	PVC, Rated 60 or 75℃

Technical Specifications

Parameter	Value
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Insulation Resistance	>1500 MΩ / 100m
Mutual Capacitance	5600 pF / 100m MAX
Characteristic Impedance	100 ± 15 Ω
Dielectric Strength	1.00KV DC or 0.7 KV AC for 1 min

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (ns/100m)	NEXT (Min dB)
4	4.05	552	56.27
10	6.47	545.38	50.3
20	9.27	542.05	45.78
100	21.98	537.6	35.3

Installation Notices

Inspect products carefully upon unpacking
Follow T568B or T568A wiring standards
Avoid excessive bending or tying of cables
Maximum recommended single run: 100 meters
Ensure proper grounding for shielded cables

Applications

This CM flame-retardant Cat5e cable is ideal for residential, office, school, hospital, and commercial building networks. Its safety features make it particularly suitable for public buildings with strict fire safety requirements like libraries, data centers, and laboratories.

Frequently Asked Questions

Q1. Can I order samples of LAN cables?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: Samples take 3-5 days, mass production takes 15-45 days before shipping.

Q3. What is the minimum order quantity?

A: Minimum order quantity is 1000PCS, depending on product type.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty on our products.
