| Brand Name: | ITI-LINK |
| Model Number: | ITI-CABLE-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

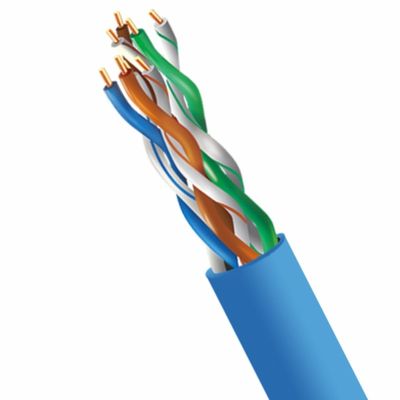

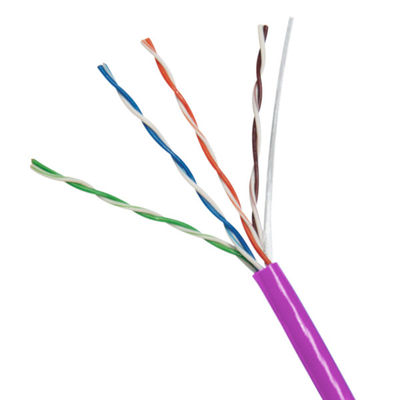

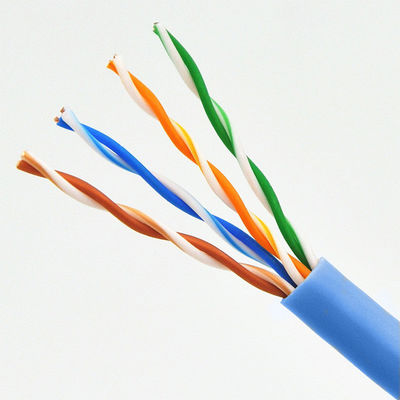

Cat5e UTP CMP PVC Plenum Cable with 24AWG solid copper conductors provides high-speed network performance up to 100MHz bandwidth. This flame-retardant cable meets strict safety standards for plenum spaces.
| Construction | Electrical Properties |
|---|---|
| Conductor: Bare Solid Copper (24AWG) | Conductor Resistance: ≤ 9.5 Ω/100m |
| Insulation: FEP DAIKIN NP-101 | Insulation Resistance: >1500 MΩ/100m |
| Jacket: PVC, MSC 1080 NAT | Mutual Capacitance: 5600 pF/100m MAX |
| Pair Twist: Variable lay lengths | Characteristic Impedance: 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 10 | 6.47 | 50.30 |
| 25 | 10.42 | 44.33 |
| 100 | 21.98 | 35.30 |
This CMP-rated Cat5e cable is ideal for:
A: Yes, we support sample orders and can customize according to your requirements.
A: 3-5 days for samples, 15-45 days for mass production.
A: Low MOQ - 1 piece available for sample checking.
A: Typically by sea (about 7 days arrival time).
A: Yes, we offer 10 years warranty on our products.
