| Brand Name: | ITI-LINK |
| Model Number: | ITI-CABLE-008 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

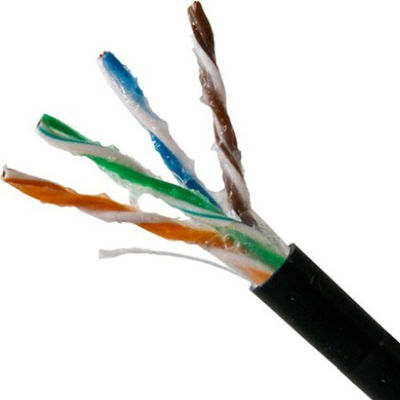

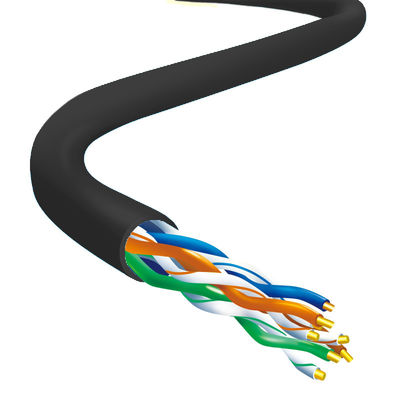

| 1 | Composition: Solid Bare Copper (BC) |
| 2 | Composition: High density Polyethylene (HDPE) |
| 3 | Type of filler: Ripcord Composition: Polyester |
| 4 | Composition: LDPE Color: according to customer requirements |
| 5 | Composition: gel |
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material: Bare Solid Copper (elongation: 19 ~ 24%) | Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m |
| OD: 24 AWG | Resistance unbalance within a pair: ≤ 2% |
| Insulation Material: New HDPE | Insulation Resistance at 20°C: >1500 MΩ / 100m |
| OD: 0.85 ± 0.05 mm | Mutual capacitance: 5600 pF / 100m MAX |
| Color: 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Characteristic impedance at 100MHz: 100 ± 15 Ω |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | UL 444 & CSA C22.2 No. 214 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% | |
| Dielectric Strength Test Voltage | No breakdown | |
| Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Frequency (MHz) | Attenuation (Max) dB/100m | Propagation Delay (MAX) ns/100m | Return Loss (Min) dB |
|---|---|---|---|
| 4 | 4.05 | 552 | 23.01 |
| 100 | 21.98 | 537.6 | 20.11 |
