| Brand Name: | ITI-LINK |
| Model Number: | ITI-CABLE-010 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

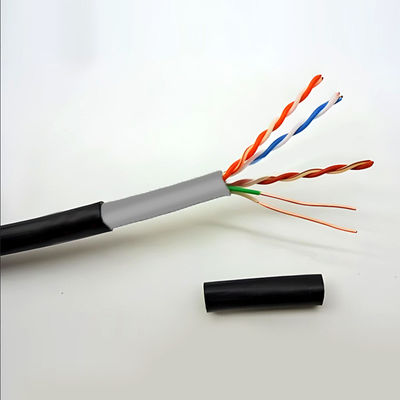

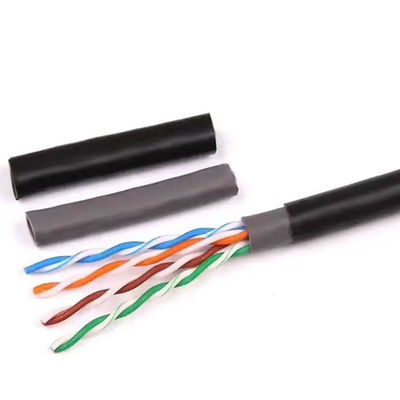

| Construction | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |
| Jacket Material | Inner Jacket: PVC + Outer Jacket: PE |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Resistance | >1500 MΩ / 100m |
| Characteristic Impedance | 100 ± 15 Ω at 100MHz |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 10 | 6.47 | 50.30 |
| 16 | 8.25 | 47.24 |
| 100 | 21.98 | 35.30 |
