| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5U-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

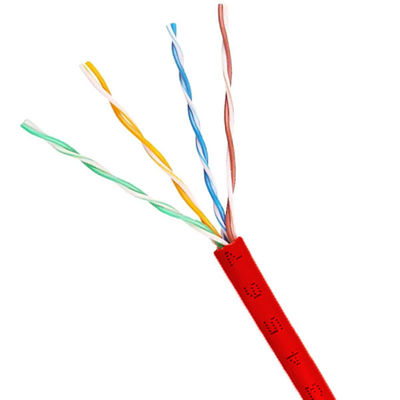

| Conductor Material | Copper |
| Conductor Size | 0.50±0.005mm |
| Frequency | 100 MHz |
| Termination Type | TIA/EIA 568B |
| Jacket Material | PVC |
| Color | Red |

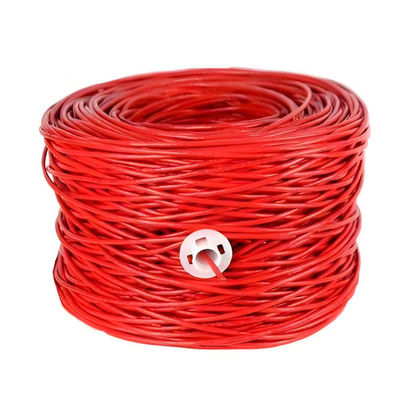

| Length | 1000 Feet |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |
| Pair Colors | 1: White/Blue, 2: White/Orange, 3: White/Green, 4: White/Brown |
| Jacket Material | PVC, 45P (-20°C to 75°C) |
| Jacket OD | 4.8 ± 0.2mm |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω/100m |
| Insulation Resistance | >1500 MΩ/100m |
| Mutual Capacitance | 5600 pF/100m MAX |
| Characteristic Impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB/100m) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 10 | 6.47 | 50.30 |
| 20 | 9.27 | 45.78 |
| 100 | 21.98 | 35.30 |
