| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5U-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

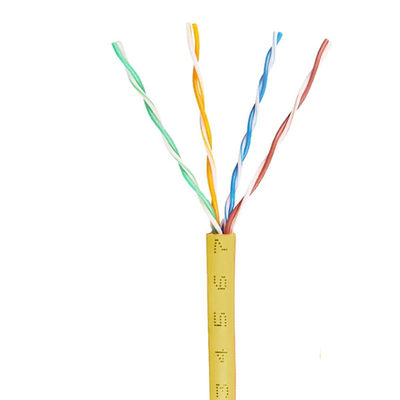

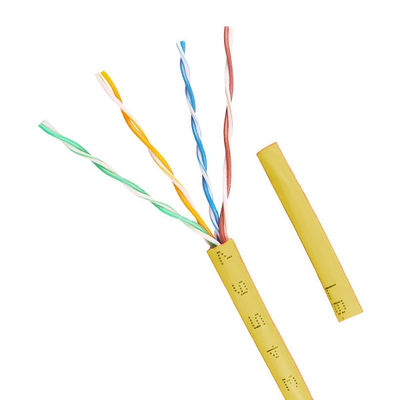

This Cat5e UTP CMP Cable is designed for high-performance network transmission, compliant with TIA/EIA 568B standards. Featuring 24 AWG oxygen-free copper conductors and CMP-rated flame retardant jacket, it delivers reliable 100MHz transmission for demanding networking environments.
| Cable Type | Cat5e UTP Cable |
| Color | Yellow |
| Conductor Material | Copper |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Termination Type | TIA/EIA 568B |
| Length | 1000 Feet |
| Frequency | 100 MHz |
| Conductor Size | 24 AWG |
| Jacket Material | PVC |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance | ≤ 9.5 Ω / 100m at 20°C |
| Insulation Material | FEP DAIKIN NP-101 E79842 |
| Jacket Material | PVC, MSC 1080 NAT E107947 |
| Pair Colors | 1p: white+blue/blue, 2p: white+orange/orange, 3p: white+green/green, 4p: white+brown/brown |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 4.05 | 56.27 | 23.01 |
| 10 | 6.47 | 50.30 | 25.00 |
| 20 | 9.27 | 45.78 | 25.00 |
| 100 | 21.98 | 35.30 | 20.11 |

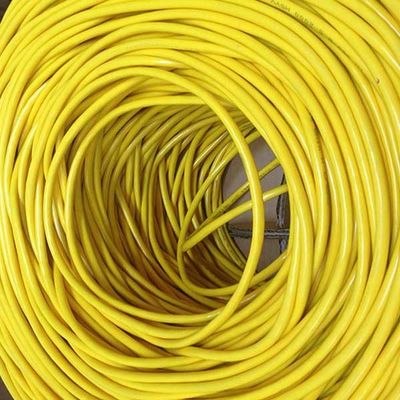

Packaged in figure-eight rolls within 36 x 36 x 21 cm colored cardboard boxes, protected by kraft paper outer boxes. Shipped via standard ground transportation with tracking provided.
