| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-005 |
| MOQ: | 1000pcs |
| Price: | $60-70 pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

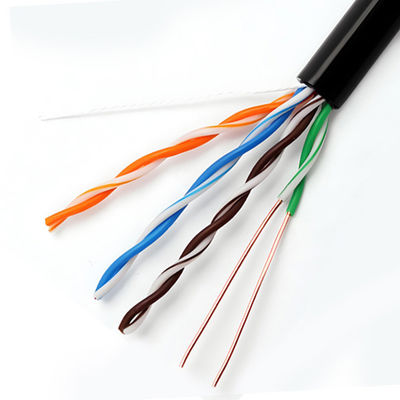

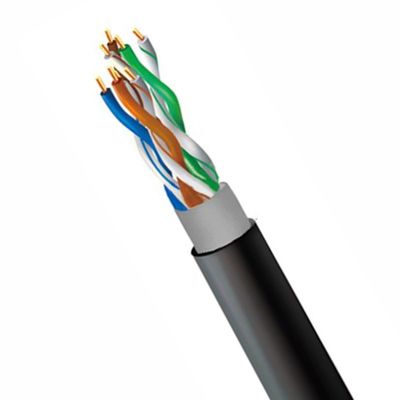

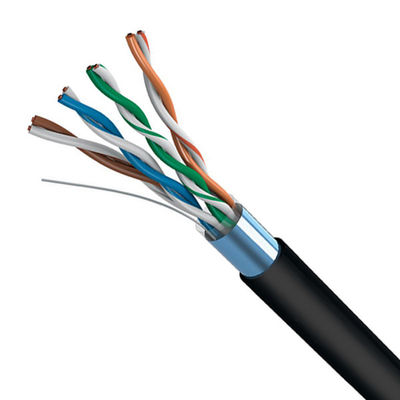

Cat5e FTP Outdoor PE 24AWG 100% Copper High Speed Network Cable (1000FT) delivers reliable performance for outdoor networking applications with superior shielding against electromagnetic interference.
| Construction Item | Description | Electrical Property | Value |
|---|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Conductor Size | 24 AWG | Resistance unbalance within a pair | ≤ 2% |
| Insulation Material | HDPE 8303 | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Insulation OD | 0.88 ± 0.05 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Jacket Material | PE | Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max) dB/100m | Propagation Delay (MAX) ns/100m | Return Loss (Min) dB | NEXT (Min) dB |
|---|---|---|---|---|
| 4 | 4.05 | 552 | 23.01 | 56.27 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 25 | 10.42 | 541.2 | 24.32 | 44.33 |
| 100 | 21.98 | 537.6 | 20.11 | 35.3 |
Effectively shields against EMI from servers and power supplies while supporting Gigabit Ethernet (1000BASE-T) for high bandwidth requirements.
Provides secure data transmission with EMI shielding to prevent information leakage and eavesdropping.
Durable PE sheath withstands adverse weather conditions while shielding maintains signal integrity in complex environments.
Ensures stable, real-time data transmission while resisting industrial EMI and physical damage.
Supports high-bandwidth applications like HD streaming and video conferencing for academic institutions.
