| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-017 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

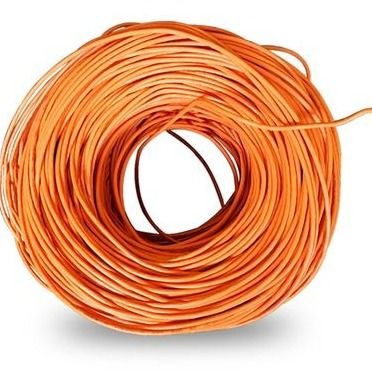

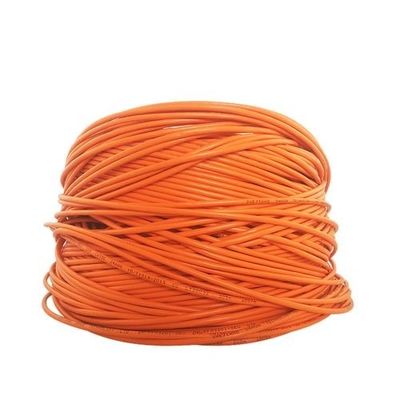

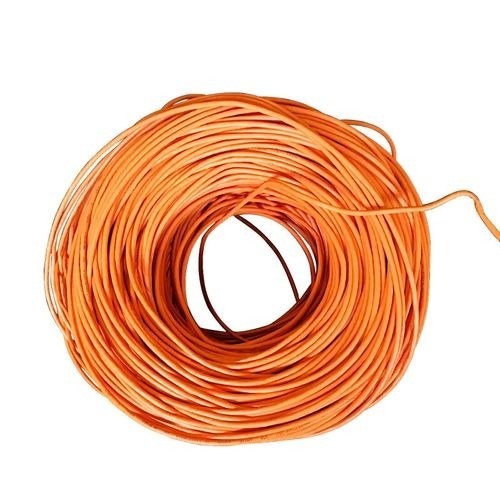

The 100MHz Frequency FTP CAT5E orange Ethernet Cable is a high-performance networking solution designed for reliable high-speed internet connectivity and seamless data transmission. With a length of 1000ft, this FTP CAT5E Internet Cable offers extensive reach for both residential and commercial networking applications.
| Frequency | 100MHz |
| Length | 1000ft |
| Conductor Material | Copper |
| Conductor Size | 24 AWG |
| Color | Orange |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Cable Type | FTP |
| Jacket Material | PVC |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |
| Pair Twist | Variable lay lengths for each pair |
| Outside Shield | Polyester film/Aluminium Foil (PET/ALU) |
| Jacket Material | PVC, 50P, -20~75℃ |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 4.05 | 552 | 45 |
| 8 | 5.77 | 546.73 | 45 |
| 10 | 6.47 | 545.38 | 45 |
| 16 | 8.25 | 543 | 45 |
| 20 | 9.27 | 542.05 | 45 |
| 25 | 10.42 | 541.2 | 45 |
| 31.25 | 11.72 | 540.44 | 45 |
| 50 | 15.07 | 539.09 | 45 |
| 62.5 | 16.99 | 538.55 | 45 |
| 100 | 21.98 | 537.6 | 45 |
This high-quality FTP CAT5E cable is ideal for various networking environments including office buildings, data centers, and educational institutions. Its reliable performance makes it suitable for connecting computers, printers, servers, and other network devices.
