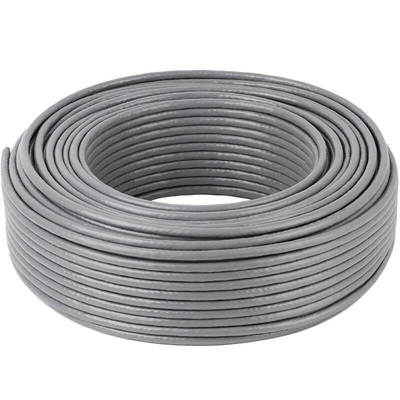

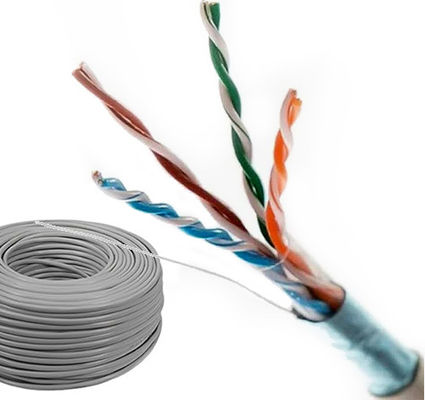

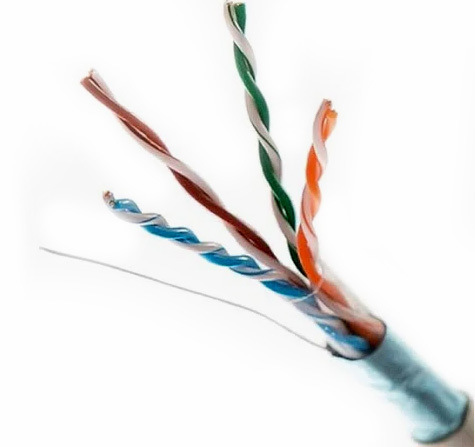

FTP CAT5E Ethernet Cable 24AWG High Speed Stable Data Transfer Gray Jacket

Name: FTP CAT5E Ethernet Cable 24AWG High Speed Stable Data Transfer Gray Jacket
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5F-025
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CT5F-025
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Cable Type:

FTP

Conductor Type:

Solid

Conductor Material:

Copper

Connector Type:

RJ45

Length:

1000Ft

Conductor Size:

24AWG

Color:

Gray

Conductor Gauge:

24 AWG

Packaging Details:

Inner box size: 31X31X20Cm Outer box size (for packing): 42x31.5x32cm

Highlight:

FTP CAT5E Ethernet cable 24AWG

Bulk CAT5E cable high speed

Gray jacket Ethernet cable stable

Product Description

FTP CAT5E Ethernet Cable 24AWG High Speed Stable Data Transfer Gray Jacket

The INTEGRITY ITI-CT5F-025 FTP CAT5E Ethernet Cable is engineered to deliver high-speed, stable, and interference-free networking for wholesale and bulk buyers. Built with 24AWG oxygen-free copper conductors and advanced FTP shielding technology, this gray CAT5E cable ensures smooth gigabit Ethernet performance across residential, commercial, and industrial deployments.

24AWG Oxygen-Free Copper Conductor: Enhances conductivity and reduces signal loss for superior data transfer.
FTP Shielding: Minimizes electromagnetic interference (EMI) and crosstalk, delivering consistent and clear signals.
100MHz High-Frequency Support: Optimized for gigabit Ethernet and bandwidth-intensive tasks in large-scale networks.
LSZH Gray Jacket: Provides low-smoke zero-halogen safety with minimal toxic emissions, ideal for hospitals, schools, and data centers.
500ft Bulk Packaging: Cost-efficient solution designed for wholesalers, system integrators, and contractors handling multi-device projects.
Durable and Flexible Design: Resistant to abrasion, chemicals, and bending stress for long-term deployments.
Versatile Compatibility: Works seamlessly with routers, switches, servers, patch panels, and IP cameras.
Global Compliance Standards: Certified and tested for UL, ETL, and RoHS compliance, ensuring safety and performance.
Wholesale Advantage: Standardized packaging lowers per-unit cost, enabling efficient distribution and project scaling.

Backed by INTEGRITY's strict quality testing and a 3-year warranty, the ITI-CT5F-025 FTP CAT5E Ethernet Cable is the go-to choice for reliable, safe, and cost-effective networking across industrial facilities, telecom networks, smart buildings, and residential broadband systems.

Technical Specifications

Construction & Electrical Properties

Construction Item	Description	Electrical Property
Conductor Material	Bare Solid Copper (elongation: 19 ~ 24%)	Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
Conductor OD	24 AWG	Resistance unbalance within a pair ≤ 2%
Insulation Material	HDPE 8303	Insulation Resistance at 20°C >1500 MΩ / 100m
Insulation OD	0.90 ± 0.01 mm	Mutual capacitance 5600 pF / 100m MAX
Color Coding	1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown	Characteristic impedance at 100MHz: 100 ± 15 Ω

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (MAX ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
1	4	552	45	56.27
100	21.98	537.6	20.11	35.3

Applications

Industrial Manufacturing: Connects automation systems, control panels, and monitoring devices with stable gigabit Ethernet.
Telecom and Networking: Provides secure and interference-free connectivity for data centers, ISP networks, and enterprise infrastructures.
Security and Surveillance: Supports IP cameras, access control systems, and VoIP devices, ensuring clear and uninterrupted communication.
Commercial and Residential Networks: Optimized for multi-floor office buildings, apartments, and smart homes, enabling seamless high-speed broadband.
Education and Healthcare Facilities: The LSZH gray jacket ensures compliance with safety standards, protecting schools, universities, hospitals, and public buildings from toxic emissions during fire hazards.
