| Brand Name: | ITI -LINK |
| Model Number: | ITI-CT5F-018 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

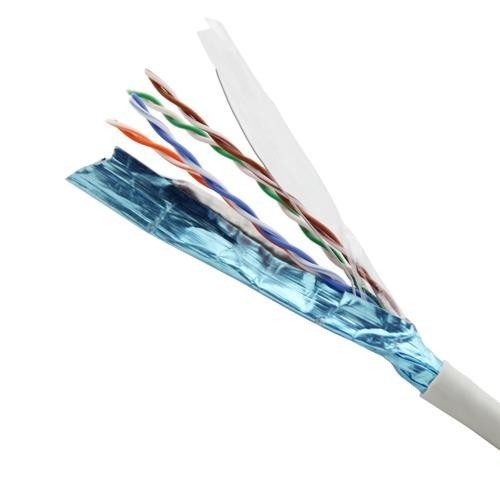

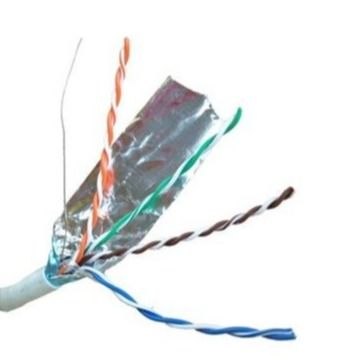

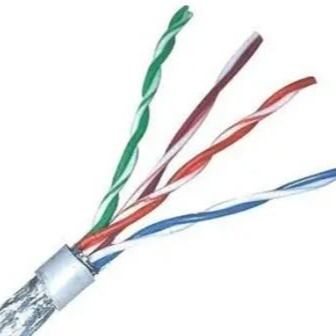

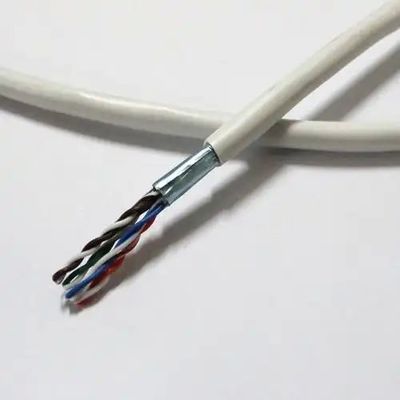

| Product Name | Bulk FTP CAT5E Ethernet Cable 24AWG High-Frequency Fast Stable Data Transfer for Wholesale |
| Cable Type | FTP |
| Cable Length | 500ft |
| Cable Color | White |
| Frequency | 100MHz |
| Jacket Material | LSZH |
| Conductor Material | Copper |
| Conductor Size | 24 AWG |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19 ~ 24%) |
| Insulation Material | HDPE 8303 |
| Pair Twist | Variable lay lengths for each pair |
| Outside Shield | Polyester/Aluminium (PET/ALU) with ≥ 115% coverage |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 8 | 5.77 | 51.75 |
| 10 | 6.47 | 50.3 |
| 16 | 8.25 | 47.24 |
| 20 | 9.27 | 45.78 |
| 25 | 10.42 | 44.33 |
| 31.25 | 11.72 | 42.88 |
| 50 | 15.07 | 39.82 |
| 62.5 | 16.99 | 38.36 |
| 100 | 21.98 | 35.3 |
