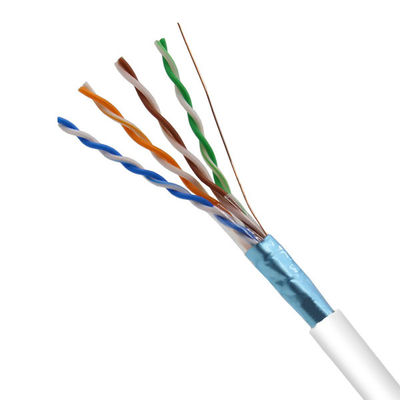

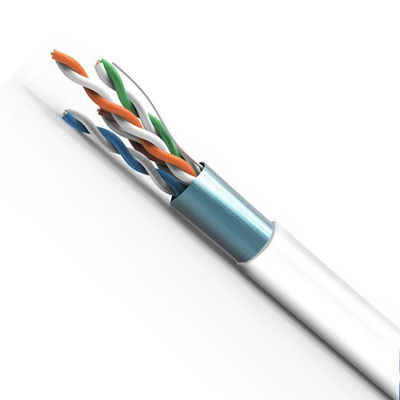

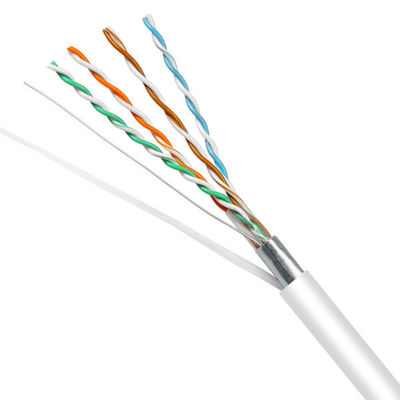

| Product Description: Cat 5e F/UTP 4 X 2 X 24AWG LSZH | |
|---|---|
| Construction Item | Description |
| Conductor Material | Bare Solid Copper (elongation: 19 ~ 24%) |
| Conductor Size | 24 AWG |
| Insulation Material | HDPE 8303 |
| Insulation OD | 0.90 ± 0.01 mm |
| Pair Colors | 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
| Outside Shield | Polyester/Aluminium (PET/ALU), ≥ 115% coverage |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Jacket OD | 5.2 ± 0.15 mm |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
| Dielectric Strength | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max) dB/100m | Propagation Delay (MAX) ns/100m | Return Loss (Min) dB | NEXT (Min) dB |
|---|---|---|---|---|
| 4 | 4.05 | 552 | 23.01 | 56.27 |
| 8 | 5.77 | 546.73 | 24.52 | 51.75 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 16 | 8.25 | 543 | 25 | 47.24 |
| 20 | 9.27 | 542.05 | 25 | 45.78 |
| 25 | 10.42 | 541.2 | 24.32 | 44.33 |
