| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-018 |
| MOQ: | 1000pcs |
| Price: | $50-100/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

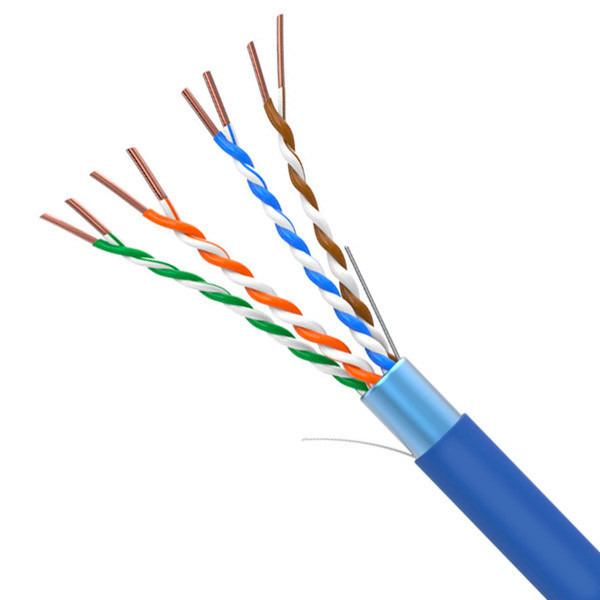

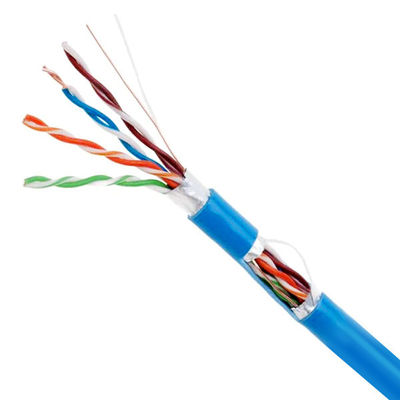

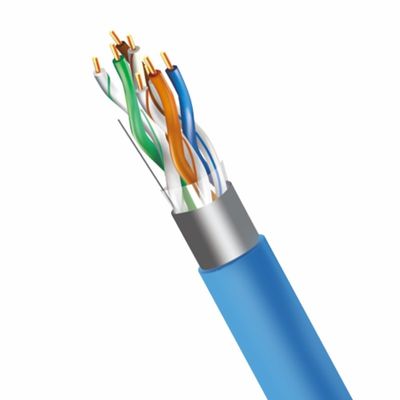

This Cat5e FTP 24AWG Solid 100% Copper network cable provides 100MHz bandwidth within 90 meters, with a typical application rate of 100Mbps. Designed for shielded and confidential systems requiring protection against electromagnetic interference, it's ideal for indoor horizontal work area wiring and LAN installations.
The cable features high-quality oxygen-free copper conductors for reliable electrical transmission performance, exceeding Category 5e system standards. Its F/UTP shielding provides strong protection against electromagnetic interference, making it suitable for environments requiring signal confidentiality.
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor | Bare Solid Copper (24AWG) | Conductor Resistance at 20°C: ≤ 9.5 Ω/100m |
| Insulation | HDPE 8303 (0.90 ± 0.02mm) | Insulation Resistance: >1500 MΩ/100m |
| Pair Twist | Variable lay lengths (15.5-22.0mm) | Mutual capacitance: 5600 pF/100m MAX |
| Shielding | Polyester/Aluminium (PET/ALU) ≥115% coverage | Characteristic impedance: 100 ± 15 Ω at 100MHz |
| Jacket | PVC, 60P (-20°C to 75°C) | Dielectric Strength: 1.00KV DC or 0.7KV AC for 1 min |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 4.05 | 552 | 23.01 | 56.27 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 25 | 10.42 | 541.2 | 24.32 | 44.33 |
| 100 | 21.98 | 537.6 | 20.11 | 35.3 |
This Cat5e FTP cable is essential for modern network communication, suitable for:
