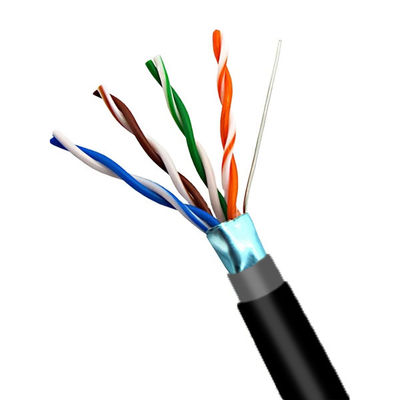

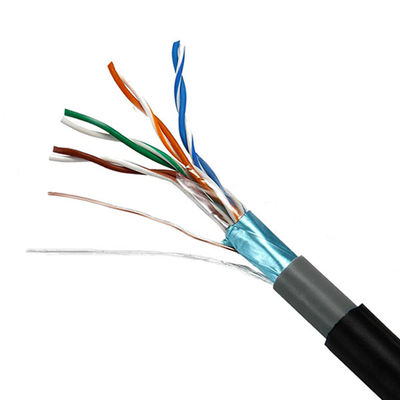

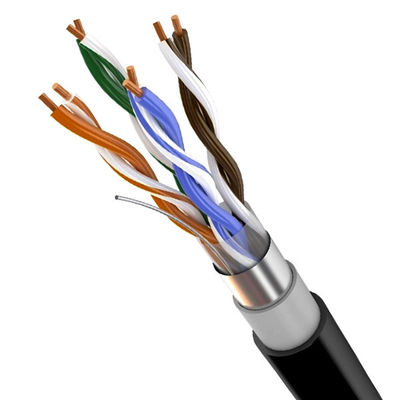

Black Network Shielded Cable Cat5e FTP Outdoor PE+PVC 24AWG 100% Copper 1000FT

Brand Name:	ITI-LINK
Model Number:	ITI-CT5F-017
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Color:

BLACK

Length:

1000 Ft

Jacket Material:

PE+PVC

Frequency:

100 MHz

Cable Type:

FTP

Conductor Size:

24 AWG

Certifications:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor AMaterial:

Bare Copper

Packaging Details:

Color Box+Packing Box 38*38*21cm

Highlight:

Network shielded cable

24AWG shielded cable

1000FT Black shielded cable wire

Product Description

Black Network Shielded Cable Cat5e FTP Outdoor PE+PVC 24AWG 100% Copper 1000FT

This Outdoor PE+PVC Cat5e FTP Network Cable is engineered for harsh outdoor environments. Constructed with premium materials, it delivers high-speed network communication while offering exceptional durability and stability in extreme weather conditions, making it ideal for outdoor network infrastructure.

Key Features

Double Layer Shielding: Aluminum foil inner layer and woven mesh outer layer effectively block EMI/RFI interference for pure signal transmission
Cat5e Performance: Complies with international standards, supporting speeds up to 100Mbps (gigabit over short distances)
FTP Shielding Technology: Aluminum foil-wrapped twisted pairs reduce signal attenuation and crosstalk
Outdoor-Grade Materials: UV-resistant PVC outer jacket with waterproof internal fillers withstand harsh weather
Easy Deployment: Optimized wire diameter maintains flexibility for complex installations

Technical Specifications

Construction	Electrical Properties
Conductor: Bare Solid Copper (24AWG)	Conductor Resistance: ≤ 9.5 Ω/100m
Insulation: HDPE 8303	Insulation Resistance: >1500 MΩ/100m
Shielding: Aluminum Foil + Braid	Characteristic Impedance: 100 ± 15 Ω
Jacket: PVC+PE	Dielectric Strength: 1.00KV DC/0.7KV AC
Temperature Range: -20°C to 75°C	Capacitance Unbalance: ≤ 160 pF/100m

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	NEXT (Min dB)
4	4.05	56.27
10	6.47	50.30
25	10.42	44.33
100	21.98	35.30

Installation Notices

Inspect products carefully upon unpacking
Follow T568B or T568A wiring standards
Maintain maximum 100m single cable distance
Ensure proper grounding for shielded cables
Avoid excessive bending or tying of cables

Applications

Smart city infrastructure and public facilities
Park and scenic area surveillance systems
Industrial park and campus networks
Smart home and security systems
Remote communication and data transmission

Frequently Asked Questions

Q1. Can I order samples of LAN cables?

A: Yes, we welcome sample orders and provide product testing reports.

Q2. What about the lead time?

A: 3-5 days for samples, 15-45 working days for mass production.

Q3. Do you have MOQ requirements?

A: Minimum order quantity is 1000 pieces.

Q7: What warranty do you offer?

A: We provide a 10-year warranty for our products.
