| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-014 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

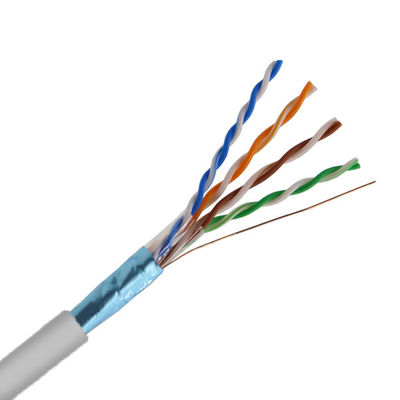

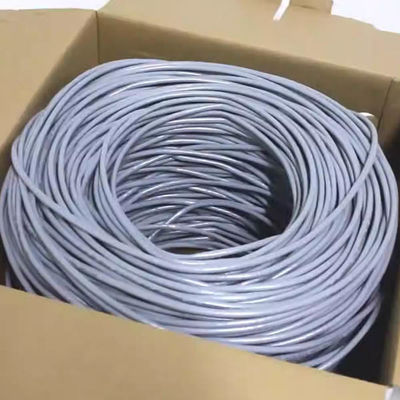

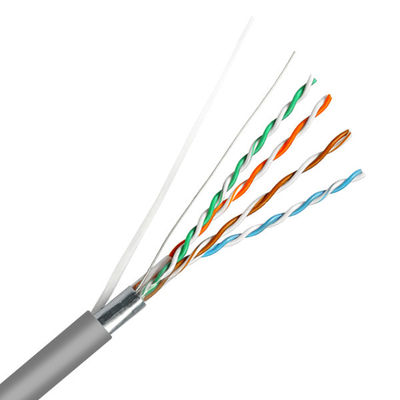

The Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable is a high-performance networking cable with multiple certifications including UL, ETL, and RoHS compliance. Featuring a sleek gray design, this 1000ft cable is ideal for office buildings, data centers, and large-scale networking environments.
| Parameter | Value |
|---|---|
| Product Name | Cat5e FTP 24AWG 0.515mm Bare Copper Gray Jacket LSZH Cable Pass Fluke |
| Length | 1000ft |
| Color | Gray |
| Frequency | 100MHz |
| Conductor Size | 24 AWG |
| Jacket Material | PVC |
| Conductor Material | Copper |
| Cable Type | FTP |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Insulation Resistance | >1500 MΩ / 100m |
| Characteristic Impedance at 100MHz | 100 ± 15 Ω |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 4.05 | 552 | 23.01 | 56.27 |
| 8 | 5.77 | 546.73 | 24.52 | 51.75 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 16 | 8.25 | 543 | 25 | 47.24 |
| 20 | 9.27 | 542.05 | 25 | 45.78 |
