| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-016 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |
High-performance CAT5E FTP 24AWG 0.515mm copper solid outdoor cable with black PE+PVC jacket, certified to IEC61156-5 standards. This UL, ETL, and RoHS certified cable delivers reliable 100MHz frequency performance for demanding networking applications.
| Attribute | Value |
|---|---|
| Cable Type | CAT5E FTP 24AWG 0.515mm Copper Solid Outdoor Black PE+PVC Cable |
| Conductor Material | Bare Solid Copper |
| Conductor Size | 24 AWG |
| Frequency | 100MHz |
| Jacket Material | PE+PVC |
| Color | Black |
| Length | 1000ft |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |

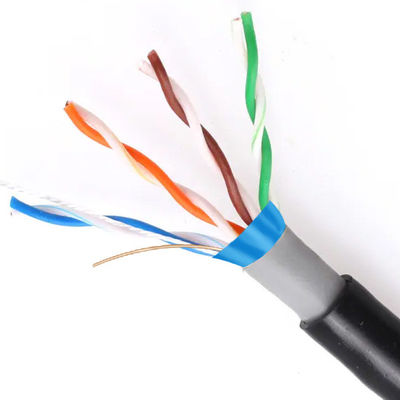

| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | HDPE 8303 (OD: 0.88 ± 0.05 mm) |
| Pair Twist | Variable lay lengths from 15.5mm to 22.0mm |

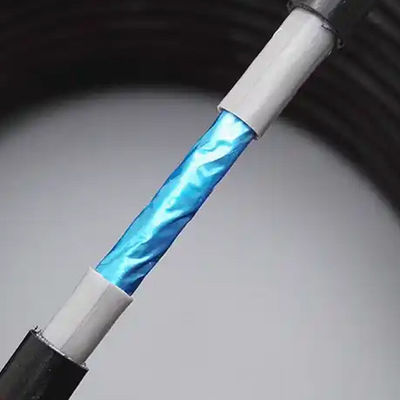

| Outside Shield | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket | Inner: PVC + Outer: PE (OD: 4.8/6.2mm) |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance Unbalance | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600 pF / 100m MAX |
| Characteristic Impedance | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 4.05 | 56.27 | 23.01 |
| 10 | 6.47 | 50.30 | 25.00 |
| 25 | 10.42 | 44.33 | 24.32 |
| 100 | 21.98 | 35.30 | 20.11 |
| Item | Details |
|---|---|

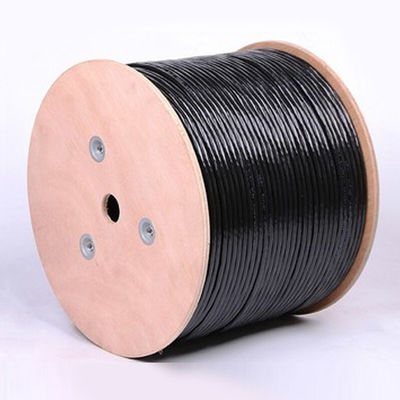

| Product Packaging | FTP CAT5E Cable, 1000ft length, black color |
| Package Dimensions | 38×38×24cm |
| Shipping Method | Standard (15-45 days delivery) |
| Shipping Cost | Free |
