| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-013 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Cable Type | CAT5E FTP |
| Jacket Material | PVC |
| Color | Yellow |
| Conductor Material | Bare Copper |
| Conductor Size | 24 AWG (0.515mm) |
| Frequency | 100MHz |

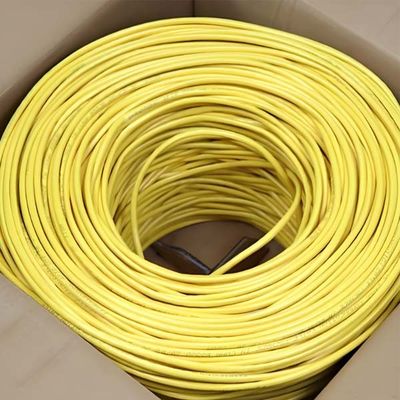

| Length | 1000ft |

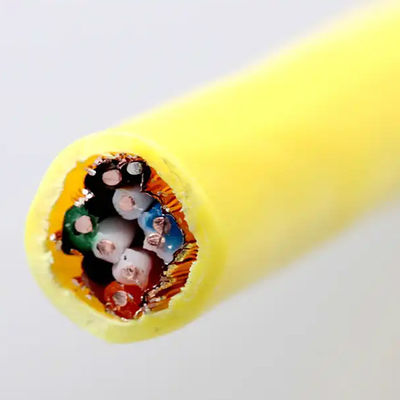

| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (24 AWG, 0.515mm) |
| Insulation | HDPE 8303 (0.90 ± 0.02 mm) |

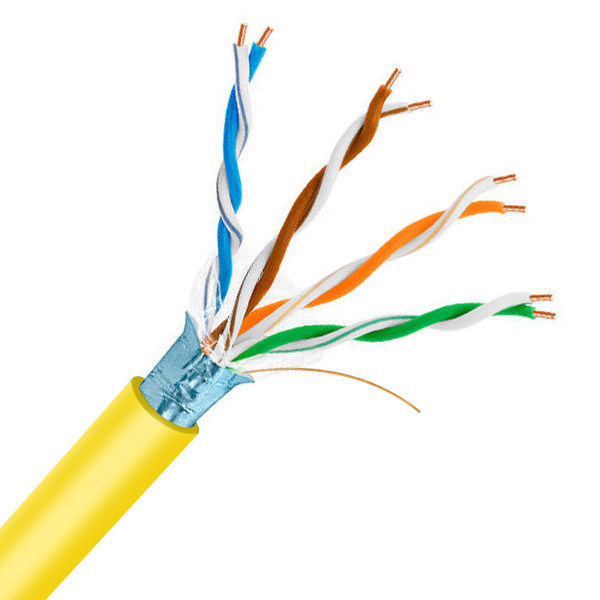

| Pair Twist | Variable lay length (15.5-22.0mm) |
| Shielding | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket | PVC, 60P (-20°C to 75°C), 4.8 ± 0.2mm OD |
| Parameter | Value |
|---|---|
| Conductor Resistance | ≤ 9.5 Ω / 100m |
| Insulation Resistance | >1500 MΩ / 100m |
| Characteristic Impedance | 100 ± 15 Ω @ 100MHz |
| Mutual Capacitance | 5600 pF / 100m MAX |
| Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 10 | 6.47 | 50.30 |
| 20 | 9.27 | 45.78 |
| 100 | 21.98 | 35.30 |
| Packaging Dimensions | 38 × 38 × 24cm |
| Shipping Method | Standard Shipping (15-45 days) |
