| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-012 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

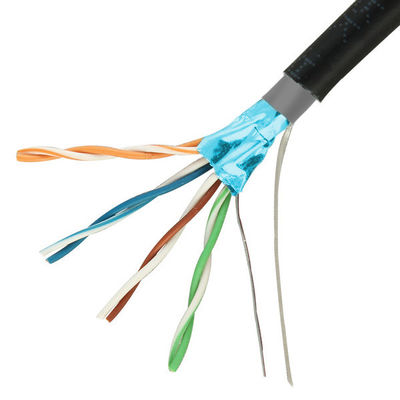

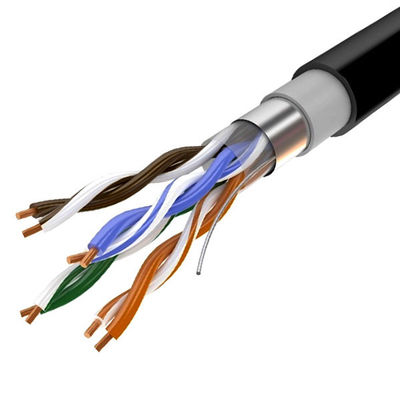

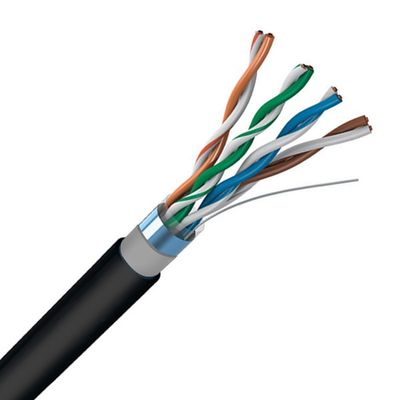

This CAT5E FTP outdoor cable features a solid 0.50mm bare copper conductor (24AWG) with PE+PVC jacket, designed for high-speed networking in outdoor environments. The 1000ft length makes it ideal for large-scale installations.
| Attribute | Value |
|---|---|
| Product Name | CAT5E FTP 0.50mm Bare Copper Outdoor PE+PVC Cable |
| Color | Black |
| Length | 1000ft |
| Conductor Material | Bare Copper |
| Frequency | 100MHz |
| Cable Type | FTP |
| Jacket Material | PE+PVC |
| Conductor Size | 24 AWG |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
