| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-011 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

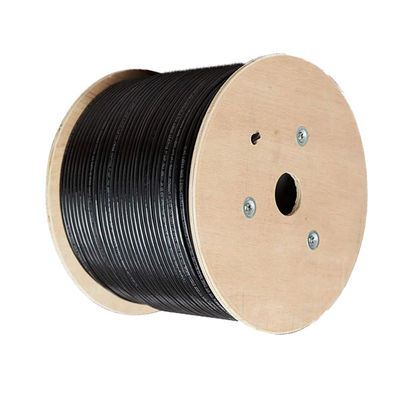

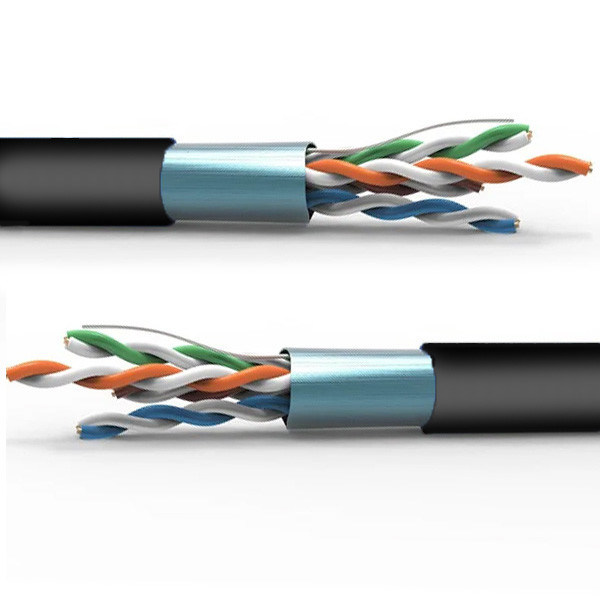

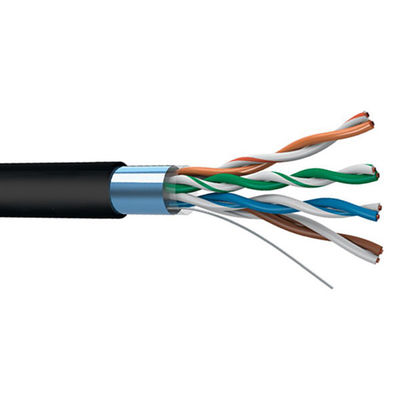

| Product Name | CAT5E FTP Outdoor PE Cable Pass Fluke |
| Conductor Size | 24 AWG |
| Frequency | 100MHz |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Color | Black |
| Conductor Material | Copper |
| Cable Type | FTP |
| Jacket Material | PE |
| Length | 1000ft |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE 8303 |
| Insulation Resistance | >1500 MΩ / 100m |
| Jacket Material | PE |
| Jacket OD | 5.2 ± 0.2 mm |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 1 | 4.05 | 552 | 45 |
| 10 | 6.47 | 545.38 | 25 |
| 100 | 21.98 | 537.6 | 20.11 |
