| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-005 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |
| Specification | Detail |
|---|---|
| Jacket Material | PVC |
| Length | 1000ft (305 meters) |
| Color | Yellow |

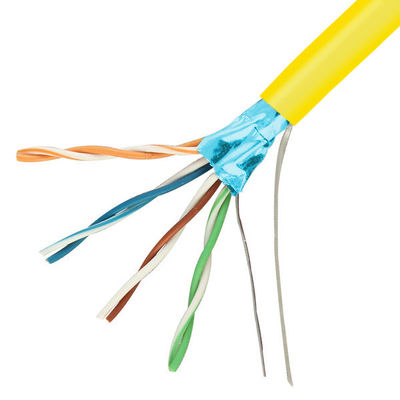

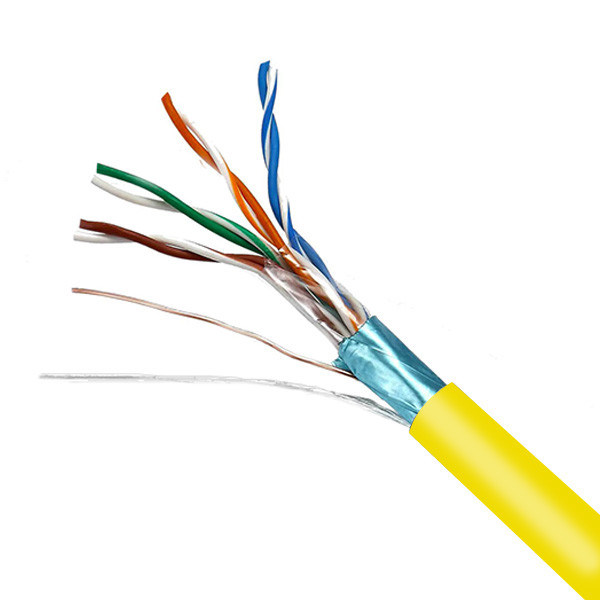

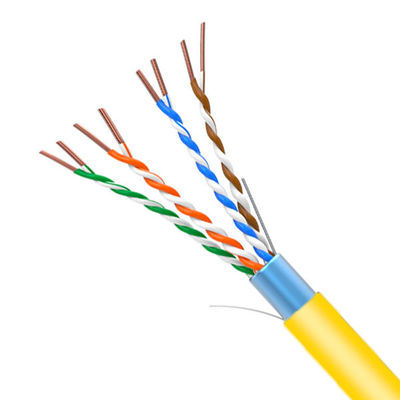

| Cable Type | Cat5e FTP Cable |
| Conductor Size | 24 AWG |
| Frequency | 100MHz |
| Conductor Material | Copper |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |
| Pair Colors | 1p: white+blue stripes, 2p: white+orange stripes, 3p: white+green stripes, 4p: white+brown stripes |
| Shield Construction | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket Material | PVC, 60P, -20°C to 75°C operating temperature |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 4 | 4.05 | 56.27 | 53.27 |
| 10 | 6.47 | 50.30 | 47.30 |
| 16 | 8.25 | 47.24 | 44.24 |
| 25 | 10.42 | 44.33 | 41.33 |
| 100 | 21.98 | 35.30 | 32.30 |
