| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-004 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Attribute | Value |
|---|---|

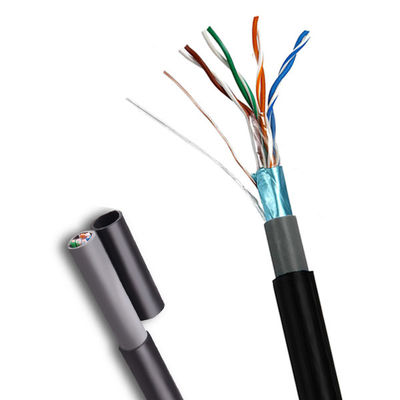

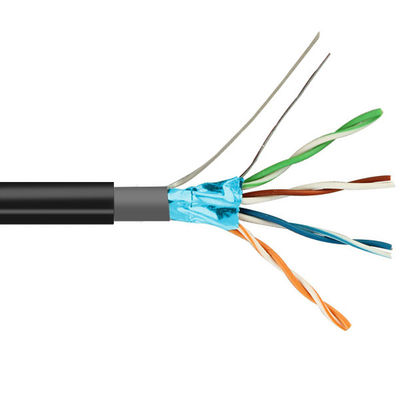

| Product Name | CAT5E FTP Outdoor PE+PVC 0.47mm Solid Black Network Cable |
| Cable Type | FTP CAT5E Shielded OUTDOOR Cable |
| Frequency | 100MHz |
| Length | 1000ft |
| Color | Black |
| Jacket Material | PE+PVC |
| Conductor Material | Copper |
| Conductor Size | 24 AWG |
| Certifications | UL ETL CSA RCM TUV CPR CE RoHS |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19 ~ 24%) |
| Conductor Size | 24 AWG |
| Insulation Material | HDPE 8303 |
| Insulation OD | 0.88 ± 0.05 mm |
| Pair Colors | White with blue/orange/green/brown stripes |
| Outside Shield | Polyester/Aluminium (PET/ALU) with ≥115% coverage |

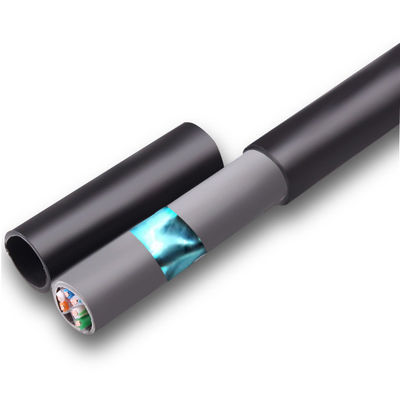

| Jacket | Inner Jacket: PVC + Outside Jacket: PE |
| Overall OD | 4.8 / 6.2 mm |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 1 | 4.05 | 56.27 |
| 4 | 8.25 | 47.24 |
| 10 | 6.47 | 50.3 |
| 16 | 8.25 | 47.24 |
| 20 | 9.27 | 45.78 |
| 25 | 10.42 | 44.33 |
| 31.25 | 11.72 | 42.88 |
| 62.5 | 16.99 | 38.36 |
| 100 | 21.98 | 35.3 |
