| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5F-002 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

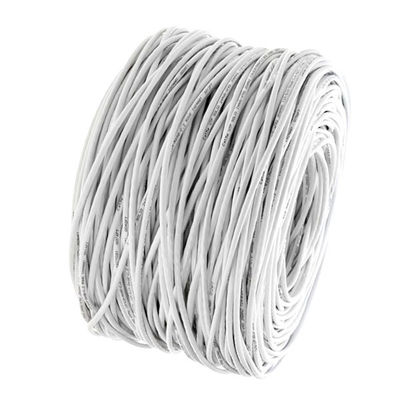

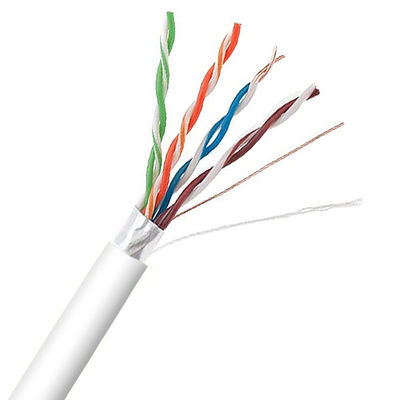

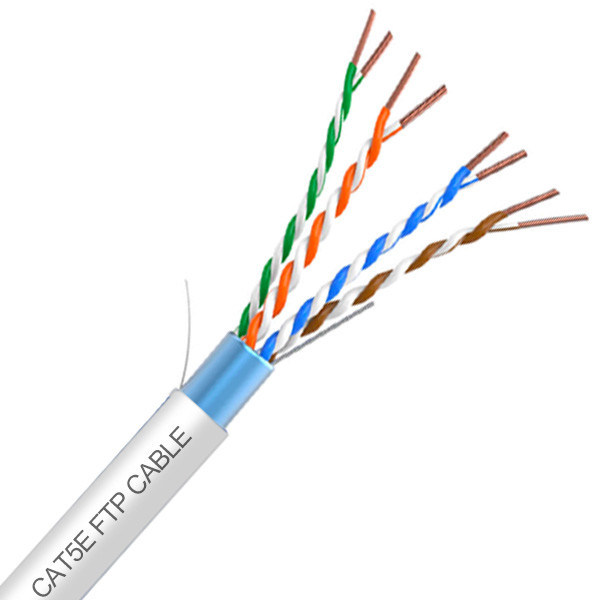

This FTP CAT5E Network Cable features shielded construction with an extra layer of protection against electromagnetic interference (EMI), making it ideal for industrial and commercial environments with electrical equipment. The white color provides easy identification, and the 1000ft length accommodates most installations.
| Cable Type | CAT5E FTP Cable |
| Frequency | 100MHz |
| Conductor Material | 100% Copper |
| Conductor Size | 24 AWG |
| Length | 1000Ft |
| Color | White |
| Jacket Material | LSZH |
| Certifications | UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS |
| Construction Item | Description | Electrical Property | Value |
|---|---|---|---|
| Conductor | Material | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Bare Solid Copper (elongation: 19-24%) | Resistance unbalance within a pair | ≤ 2% | |
| Insulation | Material: HDPE 8303 | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| OD: 0.90 ± 0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |
| Average THK: 0.20 mm | Capacitance unbalance pair to ground | ≤ 160 pF / 100m | |
| Color coded pairs | Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 1 | 4.05 | 552 | 45 | 56.27 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 100 | 21.98 | 537.6 | 20.11 | 35.3 |
